Mosque PA/GA Solution-AXT8789

Date:2015-11-24
Mosque PA/GA Solution-AXT8789

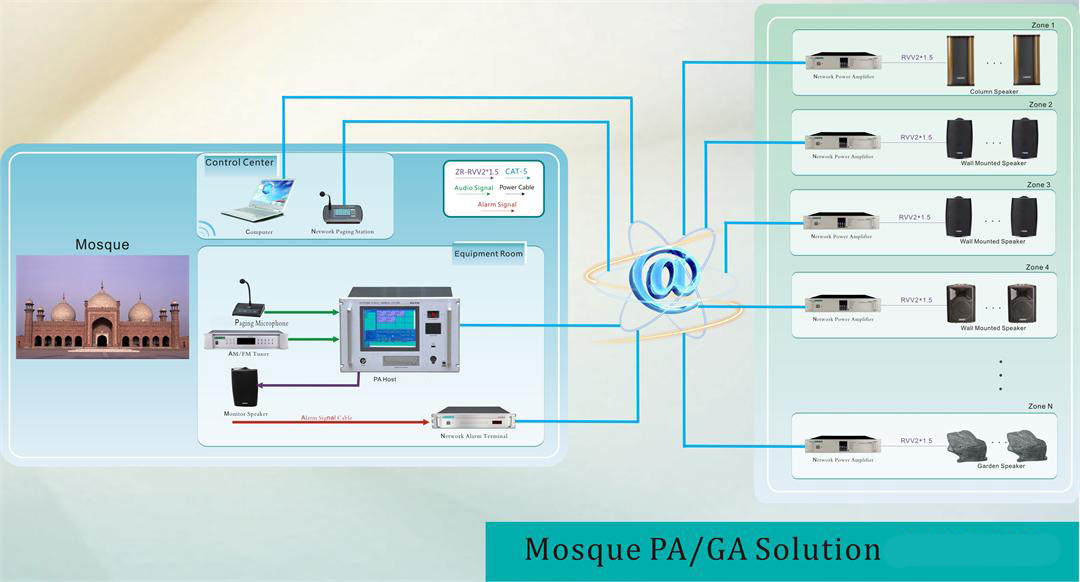

This network public address solution can be applied in large mosque to meet the needs of public broadcasting. It can realize the multiple functions of public address such as emergency broadcast, business announcement, and background broadcast. The main control host can be placed in the control room while the loudspeakers can be placed in appointed places like avenues around the mosque, parking lot, workshop, warehouse, office, corridors, etc. It supports remote paging, thus the paging microphone can be placed in the main control room and the remote control room. It also supports one-button alarm in case of fire or other emergency. Timing function is available to meet the needs of daily prayer or other special gathering.



Features:

Zone management, no limit in setting up zones, can group the zones as required;

Emergency announcement, real time voice broadcast with the emergency microphone;

Background broadcast, play background music in different zones;

Business announcement, can broadcast announcement, news and other voice message

Remote paging, realize remote paging with the call station;

Intelligent program timing function;

Automatic data backup and recovery;

Communicate with the fire center;

One key alarm function.


IP PA system,PA speaker distribution

ZONE #

AREA


Reted Power

Speaker Qty

WATTS

Zone 1

Men's Main Prayer Hall


40

8

320

Zone 2

Men's Secondary Prayer Hall


40

4

160

Zone 3

Women's Main Prayer Hall


40

6

240

Zone 4

Women's Secondary Prayer Hall


40

4

160

Zone 5

Men's Multipurpose Hall


40

4

160

Zone 6

Women's Multipurpose Hall


40

4

160

Zone 7

Terrace for special occasions


150

2

300

Zone 8

Open Area


30

4

120

Zone 9

Around Mosque


40

4

160




TOTAL WATTS

40

1,780
