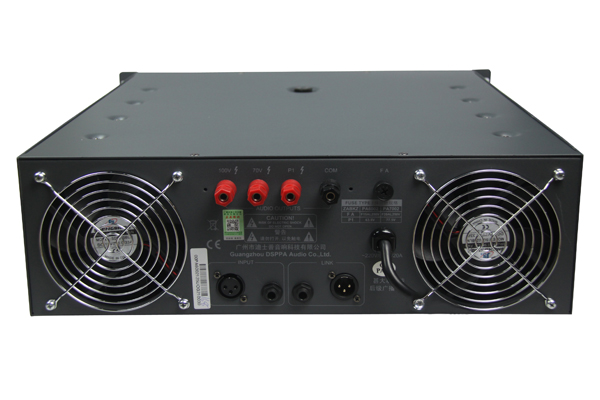

- PA8002 Power Amplifier
● Rated power:2000W
● 5 LED indicators for status display.
● XLR socket and 6.35 mm jack for link convenient.
● Output circuit shorting protection & display.
● Series amplifiers of high output power available.
PA8002 is a power amplifier, designed for general commercial and industrial public address
applications. rated power ranges from 1000W, 1500W,2000W, which provides a wide selection to meet different size sound system needs. Both balanced and unbalanced line inputs make it selectable for installer, balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V and 4-16ohm speaker outputs are convenient for installation when selection different speaker matching. A master volume control is included. Complete protection includes clip, short circuit, high temp and overload. Indications for power, signal, clip, protection and temp.
|
Model |
PA8002 |
|
Rated Power |
2000W |
|
Input sensitivity |
1V |
|
S/N Ratio |
＞80dB |
|
Damping Factor |
200:1 |
|
Input CMRR |
Greater than 90dB. |
|
Frequency Response |
50Hz-15kHz (±3dB) |
|
THD into 4W/1kHz |
＜0.3% |
|
Slew Rate |
＞15V/microsecond |
|
Indicators |
“power”, “clip”, “signal”, “prot”, and “temp” LEDs. |
|
Protection |
Power turn on-turn off,High temperature, DC voltage & Output Circuit Shorting. |
|
Power Requirement |
AC220-240V/50-60Hz |
|
Power Consumption |
3500W |
|
Dimensions |
132´484´480mm |
|
Weight |
35kg |
