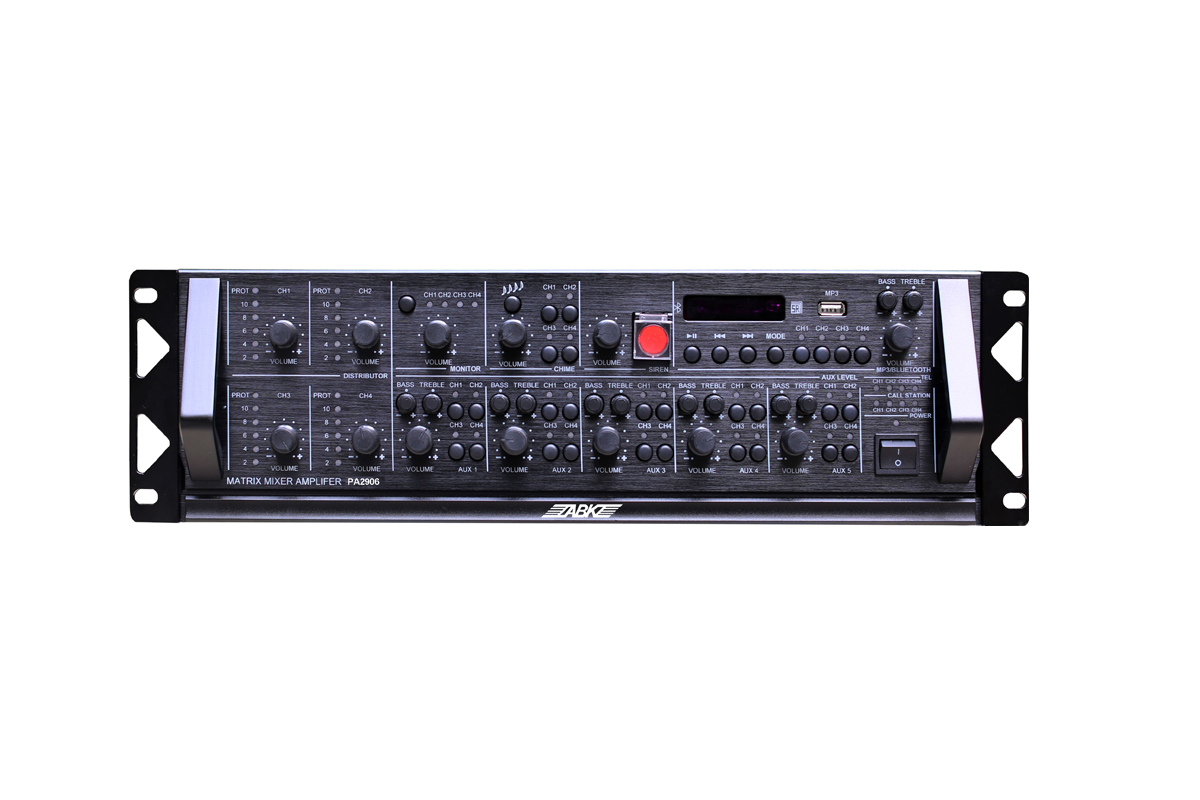

- PA2906 4x60W Matrix Bluetooth Mixer Amplifier
● Four channels of power output
● 2 channels of line input, each of which may adjust the volume and tune independently;
● 3 channels of microphone balanced input, each of which may adjust the gain and tune independently with the optional +48V phantom power supply;
Specification
|
Type |
PA2906 |
PA2912 |
|
|
Rated output power |
60W×4 |
120W×4 |
|
|
Loudspeaker output |
4-16Ω, 70V, 100V |
||
|
Input sensitivity and input impedance |
AUX1, AUX2, AUX3: (3±0.5mV/600Ω) ~ (300±50mV /10KΩ) balanced input; AUX4, AUX5: 300±50 mV /10 KΩ unbalanced input; TEL: 300±50mV /10 K Ω; CALL STATION1, 2: 2000±100 mV/10KΩ balanced input |
||
|
Tune |
Bass 100Hz ±10 dB; Treble 10000Hz ±10dB; |
||
|
Frequency response |
80Hz~16KHz |
||
|
Signal to noise ratio |
≥75 dB |
||
|
AUX1---4 output level |
2V/600 Ω balanced output |
||
|
MP3 |
Play documents in the formats of MP3, WMA, WAC and ACC stored in 32GB disk or transferred by bluetooth |
||
|
Dimension of equipment(L×W×H mm) |
483×132×440mm |
||
|
Dimension of packing (L×W×H mm) |
550×550×215mm |
||
|
Net weight |
25.5kg |
28kg |
|
|
Gross weight |
28kg |
30.5kg |
|
