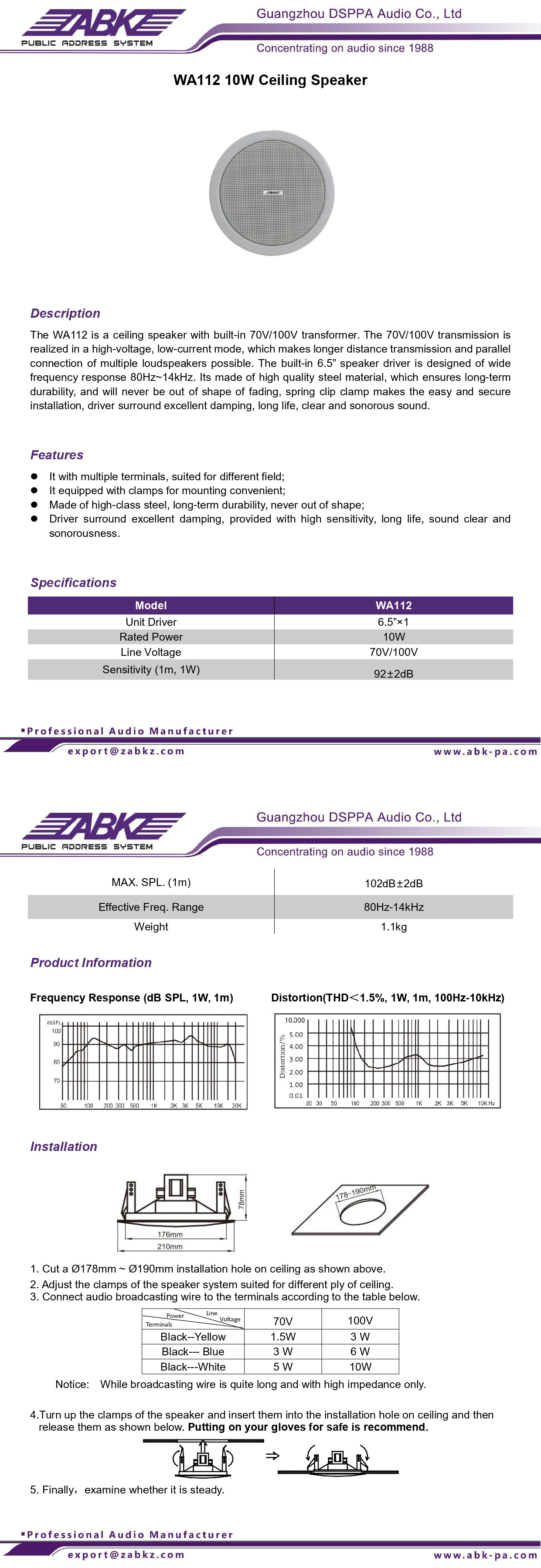

WA112 Ceiling Speaker
左滚动
  • WA112 Ceiling Speaker
右滚动
  • WA112 Ceiling Speaker
● 70/100V, 1.5~10W with multiple terminals, suited for different field;
● Max. Sound Pressure Level 100±2 dB, Effective Freq. Range 80Hz ~ 14kHz;
● Weight 1.1 kg,equipped with clamps for mounting convenient;
● Made of high-class steel, long-term durability, never out of shape;
● Driver surround excellent damping, provided with high sensitivity (92±2dB), long life, sound clear and sonorousness.
Description

The WA112 is a 6W ceiling speaker with 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission  and parallel connection of  multiple loudspeakers possible.
The built-in 6.5” speaker driver is designed of wide frequency response 80Hz-14KHz, It is made of high quality engineering plastic, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation;  Driver surround excellent damping, long life, clear and sonorous sound.
It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.


Specifications


Model

WA112

Speaker Unit

6.5”x1

Rated Power

6W

Max Power

10W

Rated Input

70/100V

Sensitivity

92±2dB

Max SPL

100±2dB

FREQ.RESP

80Hz -14kHz;

Hole for mounting

Ø178--Ø190mm

Dimension

80x Ø210mm

Weight

1.1kg
