- PA30T

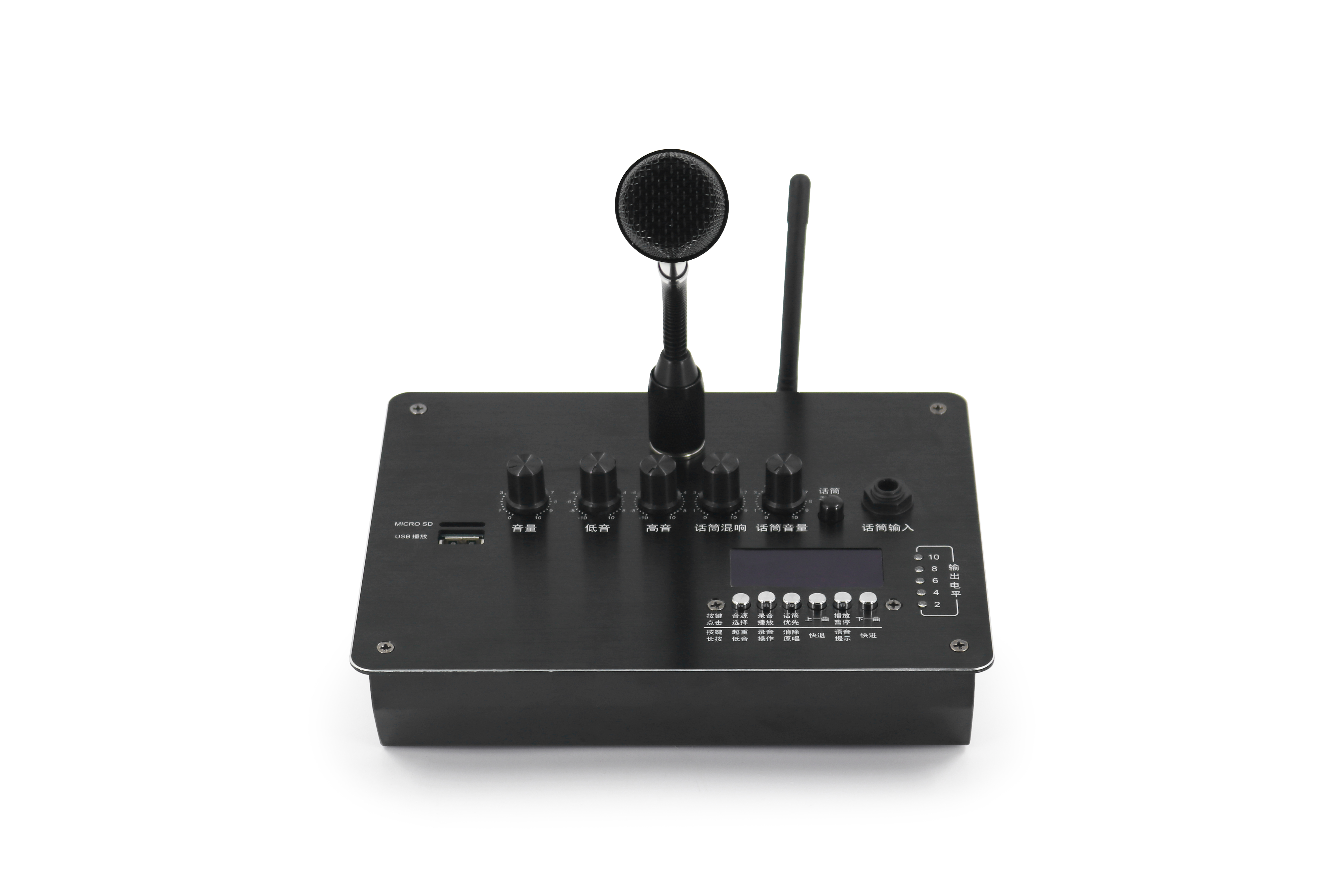

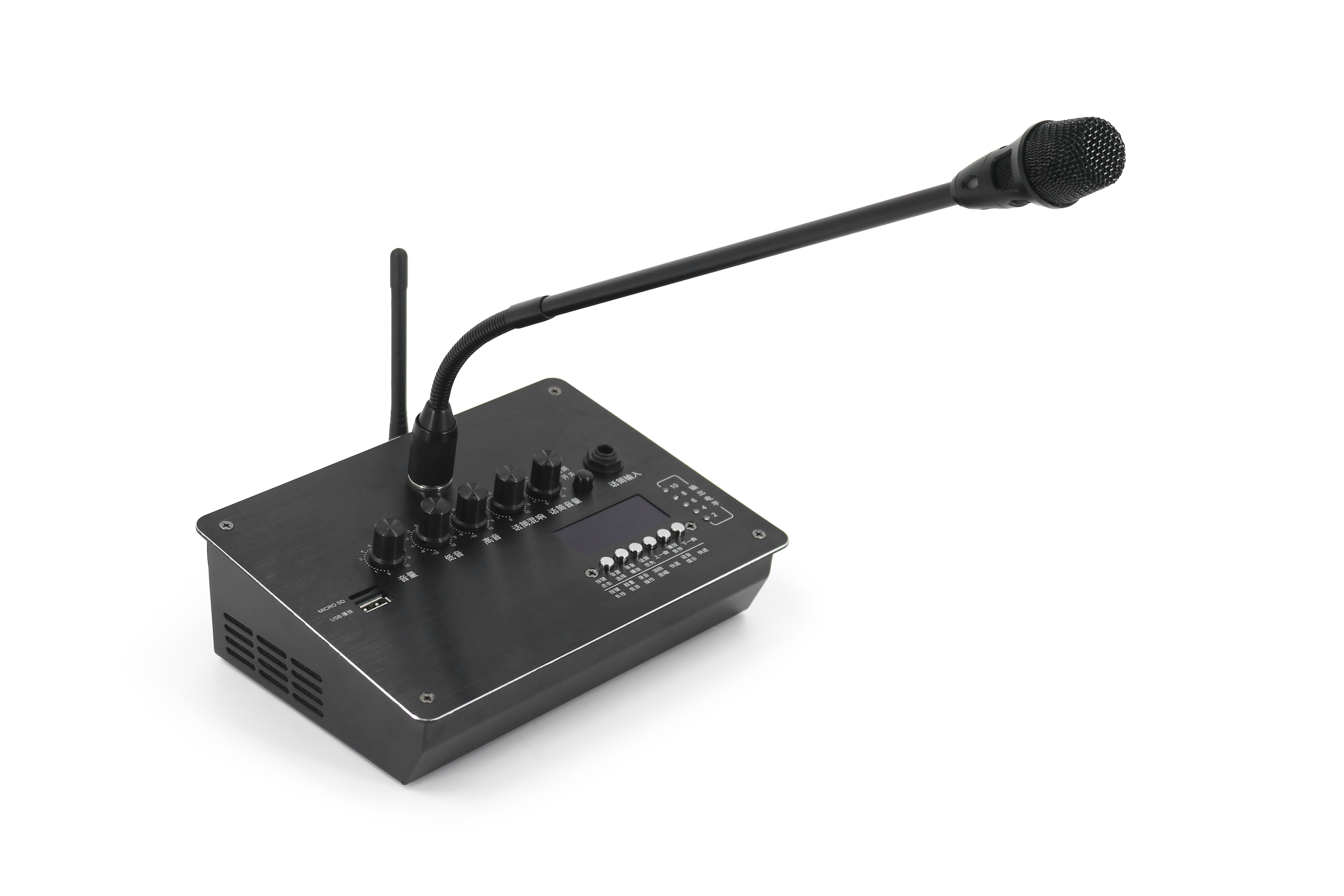

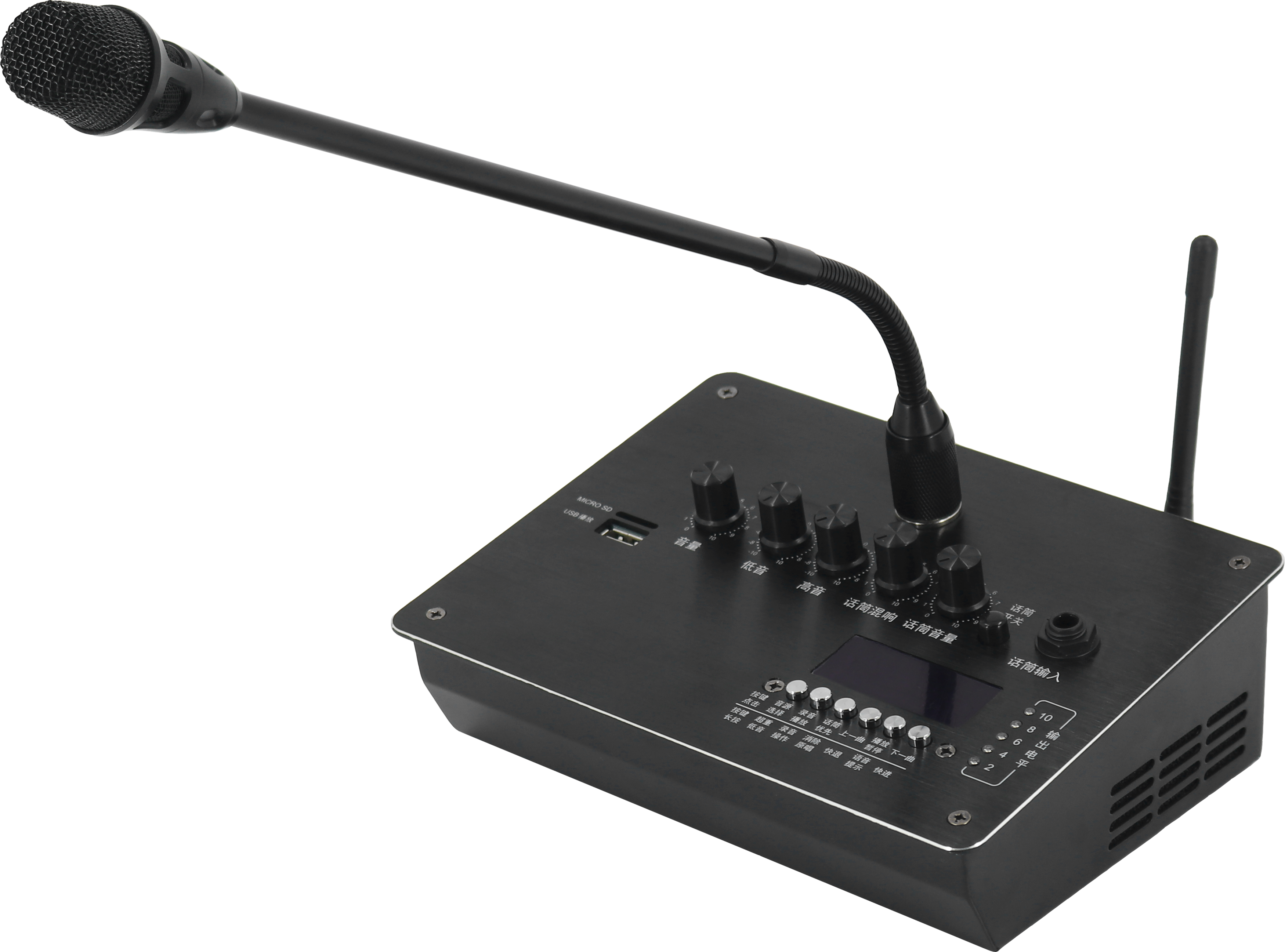

- PA30T Integrated Wireless WiFi PA System
● The transmission frequency is 730-780 MHz, which is more penetrating and farther than Bluetooth, WIFI and 2.4 MHz
● It reduces wiring cost and man-hour during installation and the host is easy to move
● With dual identification of frequency and code matching between the host and each speaker, which can ensure the
Description:
PA30T is an integrated wireless transmitter, which transfers the Bluetooth Player, MP3 Player (supporting U Disk and TF Card, and MP3, WMA, WAV, APE, FLAC decoding), Digital Recorder (with high-quality sound, 8G U Disk can record 160 hours), Broadcast Preamplifier (program mixing, tuning, microphone priority function), Karaoke reverberator (reverberation, muffler), Conference Desktop Microphone (professional gooseneck microphone rod, with LED lamp), Audio Digital Transmitter and other audio equipment in the traditional public address system into a compact Amplifier with Microphone (system host). Without cabinets, it saves a lot of space for users and can be directly placed on the desktop.
Specification:
System
Power supply
220V±10%，50Hz
Wireless frequency band
730-780MHz
System SNR
≥85dB
Pack size (L× W× H)
388×378×180mm
Pack weight
4.5KG
WL30W
AUX Input Sensitivity
500 ± 50 mv
AUX output SNR
≥ 85 d B
Freq. Response
80 Hz- 16 KHz (±3 d B)
THD
≤0.5% (1KHz, normal working condition)
Base range
10 d B (100 Hz)
Treble range
10 d B (10 k Hz)
Rated power consumption
5 W
Size (L× W× H)
200 × 149 × 58 mm
Net weight
0.9 kg
Wall-mounted speaker
Rated power
8W
Max. SPL
100±2dB
Effective frequency range
130Hz-18kHz
Mounting distance
146mm
Size (L× W× H)
195×215×280mm
Weight
1.8KG
