- PA2156

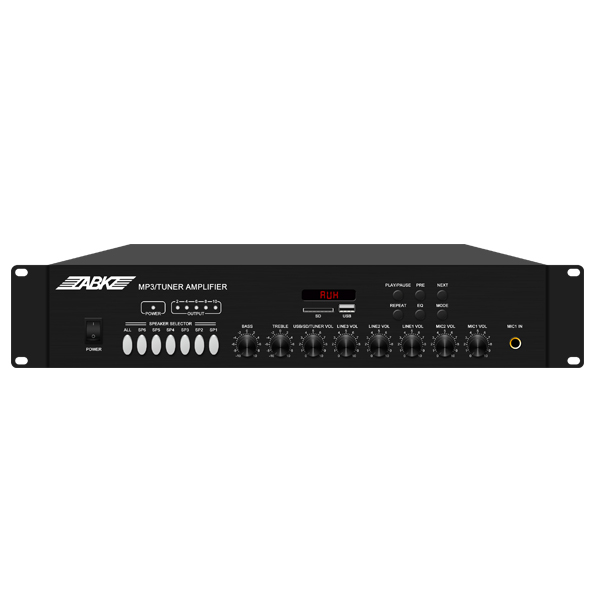

- PA2156 6 Zones Mixer Amplifier with USB/SD/FM
● Support USB/SD/FM radio for audio source inputs
● 2 MIC inputs, Mic 1 with priority and muting function
● 3 AUX inputs & 1 AUX output for power extension
● Each AUX & Mic input with individual volume control
● Reliable protection from overheat, overload, clip & short circuit
● Power supply: AC220V-240V/50-60Hz
Description:
PA2156 Series is a public address amplifier integrated with MP3 player, FM tuner, zone splitter (6 zones), preamplifier and power amplifier.
This amplifier has 3 line input, 1 line output, and 2 MIC input. MIC 1 interface on the front panel has the highest priority level. Each audio input (including built-in MP3 player and FM tuner) has independent volume adjustment knob. For preamplifier, there are treble and bass adjustment knobs. All 6 zones have output voltage 100V and independent switch. There is switch to control on/off of all 6 zones and a LED screen to display working status.
This amplifier is suitable for places where small public addresssystem is needed.
Specification:
|
Model |
PA2126 |
PA2136 |
PA2146 |
PA2156 |
|
Rated Output Power |
250W |
350W |
450W |
650W |
|
Load Regulation |
From full load to no load, ≤3dB |
|||
|
Input Sensitivity |
MIC: 50mV-60mV (Unbalanced) LINE: 330mV-350mV (Unbalanced) |
|||
|
Frequency Response |
80Hz-16kHz(±3dB) |
|||
|
THD |
≤5% (1kHz, under normal working condition) |
|||
|
SNR |
LINE: ≥70dB |
|||
|
Tone Adjustment |
BASS: ±10dB±2dB（100Hz） TREBLE: ±10dB±2dB（10kHz） |
|||
|
Protection Function |
DC, overload, and short circuit. |
|||
|
Mute Function |
MIC1 IN will override other inputs |
|||
|
Power Supply |
AC220-240V/50-60Hz |
|||
|
Power Consumption |
350W |
450W |
660W |
800W |
|
Machine Dimension (mm) |
(L×W×H) 485×330×88 |
(L×W×H) 485×400×88mm |
||
