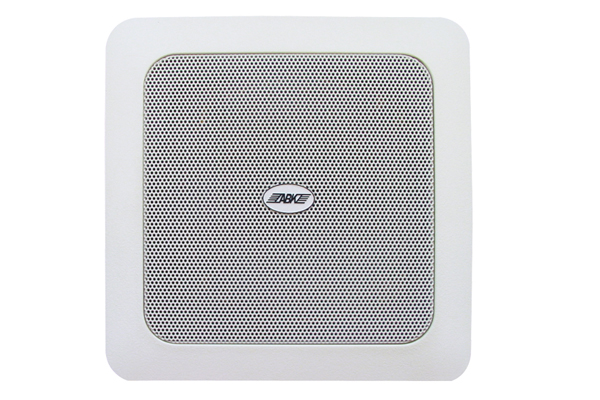

WA131 Ceiling Speaker
左滚动
  • WA131 Ceiling Speaker
右滚动
  • WA131 Ceiling Speaker
● 70/100V, 1.5 ~10W with multiple terminals, suited for different field;
● Max. Sound Pressure Level 96±2dB, Effective Freq. Range 100Hz ~ 16kHz;
● Weight 0.8 kg,equipped with clamps for mounting convenient;
● Made of high quality engineering plastic, long-term durability, never out of shape and fade;
● Driver surround excellent damping, provided with high sensitivity (90±2dB), long life, sound clear and sonorousness.
Description

The WA131 is a ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission  and parallel connection of  multiple loudspeakers possible.
The built-in 4.5”speaker driver is designed of wide frequency response 100Hz-16Hz, It is made of high quality engineering plastic, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation;  Driver surround excellent damping, long life, clear and sonorous sound.
It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.


Specification


Model

WA131

Speaker Unit

4.5”x1

Rated Power

3W

Max Power

6W

Rated Input

70/100V

Sensitivity

90±2dB



Max SPL

95±2dB

FREQ.RESP

100Hz -16kHz;



Hole for mounting

150x150mm

Demension

65x180x180mm

Weight

0.8kg
