- PA35UB
- PA35UB Mini Digital Mixer Amplifier with USB & Bluetooth
● 2 MIC inputs, 2 EMC inputs, 2 line inputs, 1 line output.
● Speaker output of 100V or 70V & 4 -16 Ω.
● Support infrared remote control.
● With priority function, priority is EMC/MIC1>AUX1/AUX2/MIC2.
● With master volume control, individual volume control of MIC & Line, treble and bass volume control.
Description

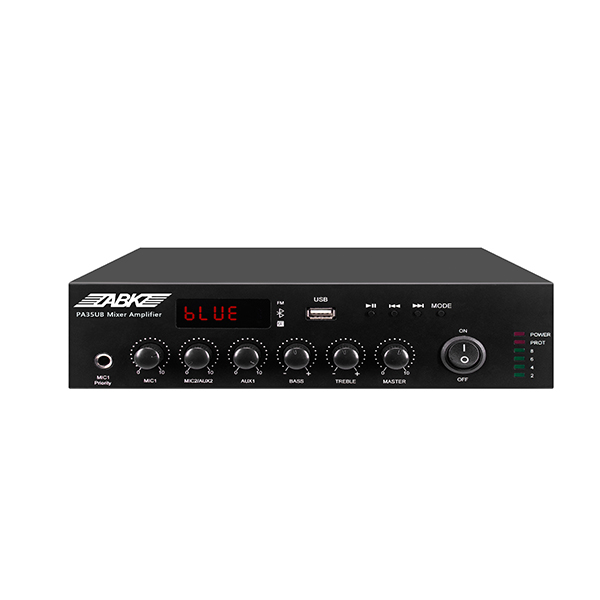

PA35UB is 1.5U designed Mini Digital amplifier with USB/FM and Bluetooth. The Speaker output is 70V/100V and 4-16Ω available, 3 Aux input, Min1 is 6.3 mm jack in front panel and Mic2 is XLR in rear panel, Phantom power available for Mic2. Individual volume control for each Mic and Aux, also provide Bass and Treble control. What's more, it also has EMC signal input for emergency situation. This product can be called mini digital amplifier or Bluetooth mini amp.
Features
● Built-in radio, Bluetooth, usb function.● 2 MIC inputs, 2 EMC inputs, 2 line inputs, 1 line output.
● Speaker output of 100V or 70V & 4 -16 Ω.
● Support infrared remote control.
● With priority function, priority is EMC/MIC1>AUX1/AUX2/MIC2.
● With master volume control, individual volume control of MIC & Line, treble and bass volume control.
Specification
|
PA35UB |
|
|
Description |
PA Amplifier with USB/SD & FM & Bluetooth |
|
Rated power |
35W |
|
Speaker Outputs |
100V or 70V & 4Ohms-8 Ohms-16 Ohms |
|
Connector |

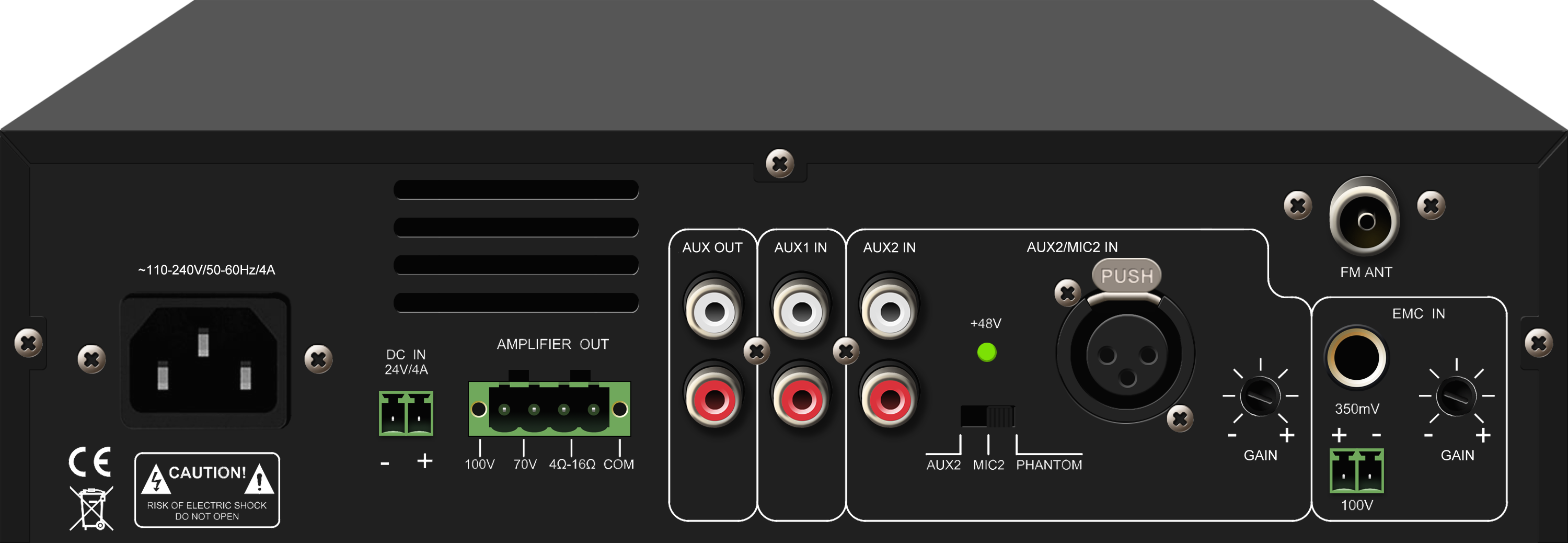

Mic1 input by unbalance 6.3mm phone jack MIC 2& MIC3 balance XLR socket Line1-2 inputs by RCA; Line output by RCA
|
|
Attenuation |
Microphone1-3, line1-2 and Mp3/FM, bass/treble and master |
|
5mV |
|
|
MIC2 input sensitivity |
5mV |
|
MIC3 input sensitivity |
|
|
AUX1 input sensitivity |
350mV |
|
AUX2 input sensitivity |
350mV |
|
EMC input sensitivity |
350mV |
|
MIC frequency response |
180Hz～10kHz（±3dB） |
|
AUX frequency response |
70Hz～16kHz（±3dB） |
|
Noise |
<5mV (4 ohm load output terminal) |
|
THD |
<1% 1KHz |
|
Protection |
Short-circuit, clip, overload and high temp protection |
|
10dB（±2） |
|
|
Bass adjustment |
10dB（±2） |
|
Rated power Supply |
|
|
Rated outpu voltage |
35W/4Ω, AC220V |
|
Priority |
EMC > MIC1 > others |
|
Machine size(L×W×H) |
247*198*66mm |
|
Packing size |
343*302*121mm (1PS) |
|
Maximum packing size |
630*355*283mm (4PS)
|
|
Net Weight |
2.55kg |
|
Gross Weight |
3.2Kg (1PS) |
