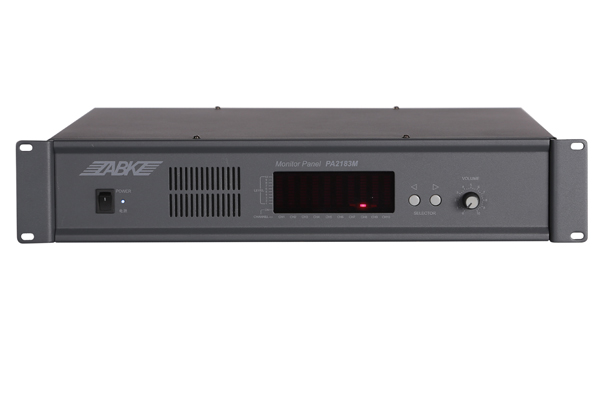

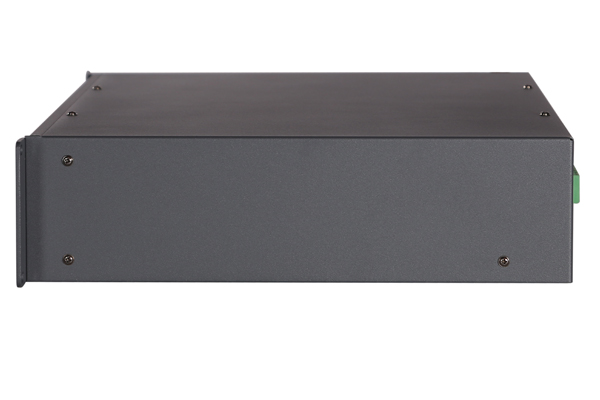

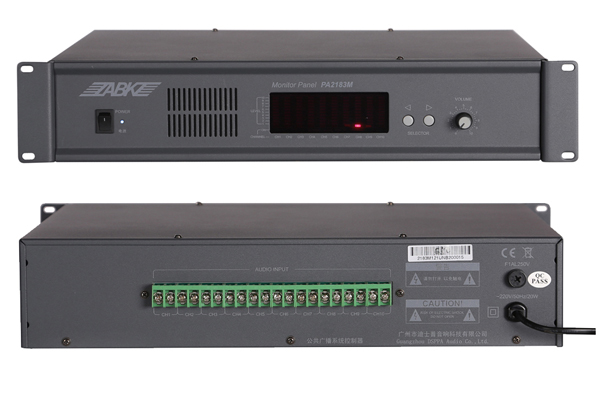

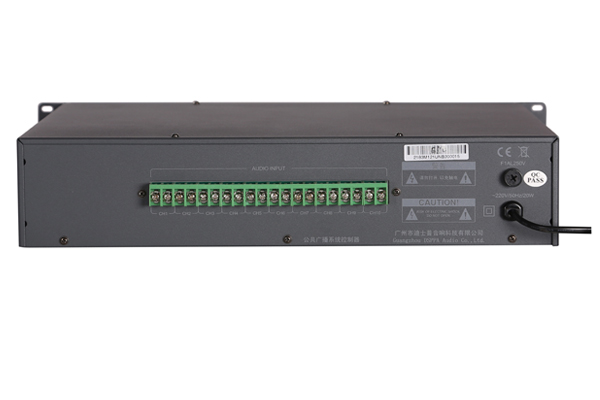

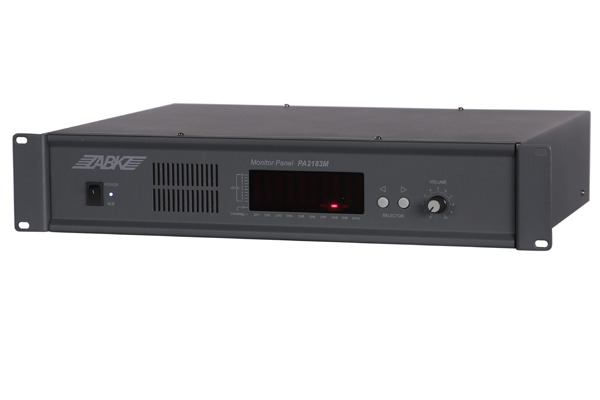

- PA2183M 10 Channels Monitor
● 10CH inputs.
● Volume control.
● A display screen is provided for the quick and easy visual monitoring of input level.
● Build in monitor speaker.
● Volume control.
● A display screen is provided for the quick and easy visual monitoring of input level.
● Build in monitor speaker.
Description
The PA2183M is a 10 Channels Monitor which has 10CH inputs and Volume Control .
It has A display screen is provided for the quick and easy visual monitoring of input level.
It can Build in monitor speaker.
It is an ideal choice for industrial and commercial applications in hotel, school, trade building,
supermarket,where background music and paging is needed.
Specifications
The PA2183M is a 10 Channels Monitor which has 10CH inputs and Volume Control .
It has A display screen is provided for the quick and easy visual monitoring of input level.
It can Build in monitor speaker.
It is an ideal choice for industrial and commercial applications in hotel, school, trade building,
supermarket,where background music and paging is needed.
Specifications
|
Channels |
10, switchable |
|
Inputs |
70 ~ 100 V , 10 kΩ |
|
Output |
65 dB SPL Variable |
|
Frequency response |
100 Hz---15 kHz |
|
Signal to noise ratio |
80 dB |
|
Speak |
Build in |
|
Protection |
AC fuse ×1 |
|
Power Requirement |
AC 220 –240 V / 50～60 Hz |
|
Dimensions |
485×88×378 mm |
|
Gross weight |
6.5 kg |
|
Net weight |
5.2 kg |
