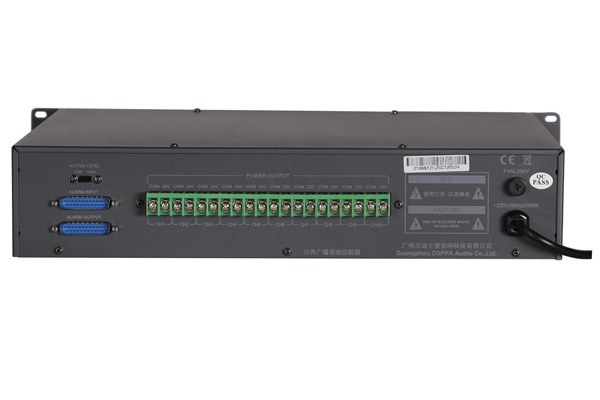

- PA2188S 10 Channels Switching Power
● 10CH Alarm input
● 10CH Alarm link output
● 10CH DC 24V switching power outputs
● 10CH Alarm link output
● 10CH DC 24V switching power outputs
Description
The PA2188S is a 10 channels switching power,which has 10 channels alarm input and 10 channels alarm link output,as well as 10 channels DC 24V switching power outputs.
It is an ideal choice for industrial and commercial applications in hotel, school, trade building,
supermarket,where background music and paging is needed.
Specifications
The PA2188S is a 10 channels switching power,which has 10 channels alarm input and 10 channels alarm link output,as well as 10 channels DC 24V switching power outputs.
It is an ideal choice for industrial and commercial applications in hotel, school, trade building,
supermarket,where background music and paging is needed.
Specifications
|
Channels |
10, activated by alarm signal |
|
Alarm Level |
12 V / 0 V , preset available |
|
Output |
DC 24 V ×1 A per channel |
|
Protection |
AC fuse 1 |
|
Power Requirement |
AC 220 –240 V / 50～60 Hz |
|
Dimensions |
485×88×378mm |
|
Gross weight |
11.5 kg |
|
Net weight |
10.2 kg |
