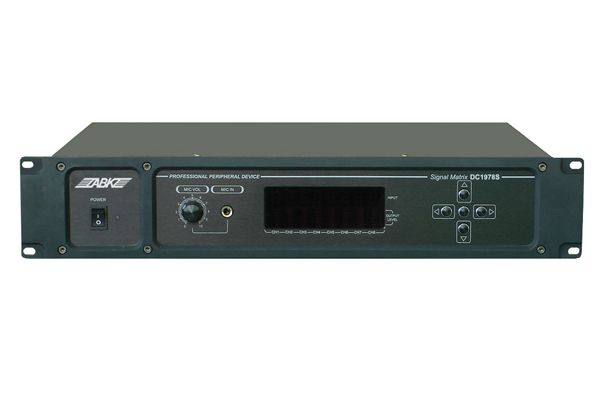

- DC1978S Signal Matrix
● Signal matrixes (one ALM input, one REMOTE input and 8CH inputs 8CHoutputs).
● Linkage available，the channel will be switched to ALM input automatically while alarming.
● One microphone amplifier.
● Input channels indicator.
● Outputs level indicator.
● Memory function.
● Remote–control by PC available.
● Programmed controlled by DC1989T available
● AC110V/AC220V/DC24V power supply
● Linkage available，the channel will be switched to ALM input automatically while alarming.
● One microphone amplifier.
● Input channels indicator.
● Outputs level indicator.
● Memory function.
● Remote–control by PC available.
● Programmed controlled by DC1989T available
● AC110V/AC220V/DC24V power supply
Description
This DC1978S Signal Matrix is used in audio matrix system for pa system:
Signal matrix (one ALM input, one REMOTE input and 8CH inputs 8CH outputs)
Linkage available.the channel will be switched to ALM input automatically while alarming
One microphone amplifier
Input channels level indicator
Outputs level indicator
Memory function
Remote–control by PC available.
Programmed controlled by PC1014T available
AC110V/AC220V/DC24V power supply
Specification
This DC1978S Signal Matrix is used in audio matrix system for pa system:
Signal matrix (one ALM input, one REMOTE input and 8CH inputs 8CH outputs)
Linkage available.the channel will be switched to ALM input automatically while alarming
One microphone amplifier
Input channels level indicator
Outputs level indicator
Memory function
Remote–control by PC available.
Programmed controlled by PC1014T available
AC110V/AC220V/DC24V power supply
Specification
|
Input |
0dBV，unbalanced |
|
Audio Output |
0dBV，unbalanced |
|
Frequency response |
20Hz-20kHz(±3dB) |
|
Protection |
AC fuse×1(220V: F0.5AL, 110V: F1AL) |
|
Power Requirement |
1. AC220V/110V 50/60Hz |
|
Outer Packing Size(mm) |
(L×W×H) 555×455×185 |
|
Unit Size (mm) |
(L×W×H) 484×349.5×88 |
|
Gross weight |
8.1kg |
|
Net weight |
6.3kg |
