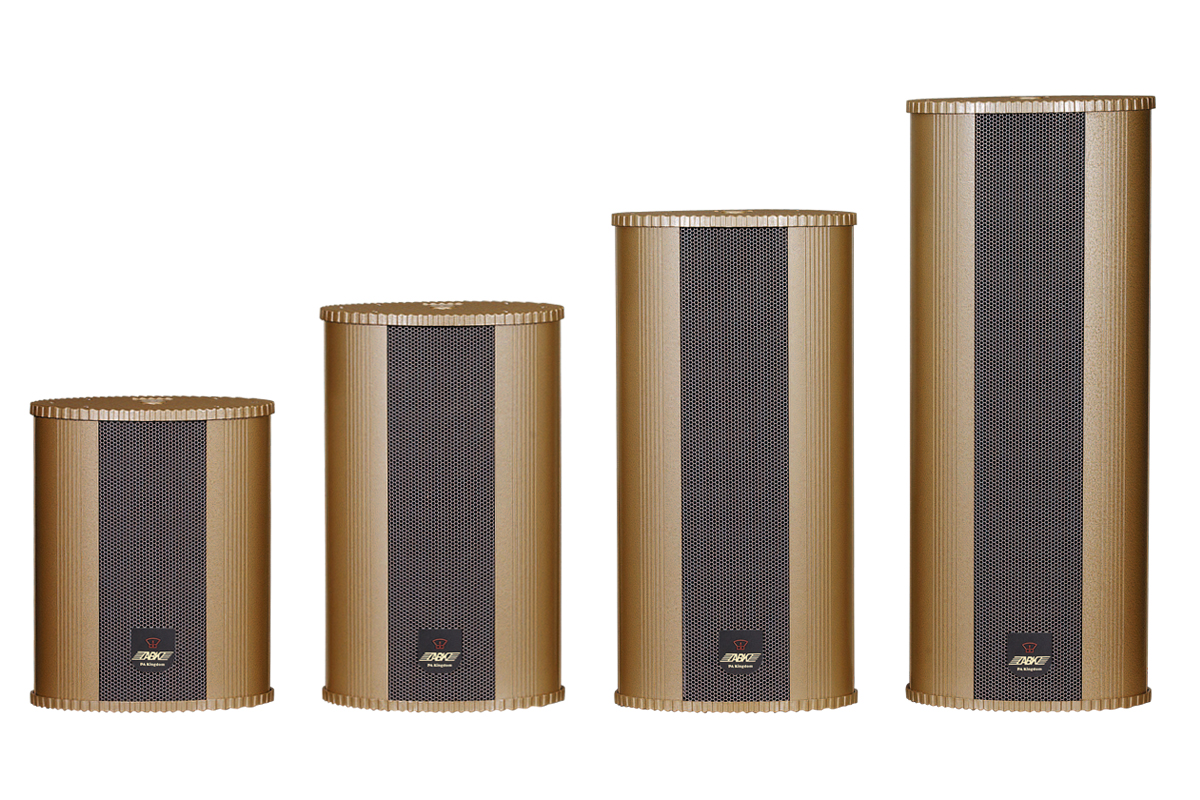

- WS441/WS442/WS443/WS444 Series Dual Direction Column Speaker
● Max SPL: 101~112±2dB
● High sensitivity: 89~94±2dB
● Effective Freq: 140Hz-14kHz
● equipped with hanging holes for mounting
● Long life, sound clear and sonorousness.
● ong-term durability
Description
This series of speakers are weatherproof outdoor column speakers with a 70v/100v transformer built in.
The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance
transmission and parallel connection of multiple loudspeakers possible.
It can be applied to outdoor occasions vary in area sizes and background noises, such as station, park, school,
square, military camp, industrial park, beach, etc.
Specification
|
MODEL |
WS441 |
WS442 |
WS443 |
WS444 |
|
Full-range Speaker / HF Driver |
4’’x 2, 2.5’’x2 |
4’’x 4, 2.5’’x2 |
4’’x 6, 2.5’’x2 |
4’’x 8, 2.5’’x2 |
|
Rated POWER |
15W-30W |
30W-60W |
45W-90W |
60W-120W |
|
Sensitivity |
89±2dB |
91±2dB |
93±2dB |
94±2dB |
|
Max SPL |
101±2dB |
106±2dB |
110±2dB |
112±2dB |
|
FREQ.RESP |
140Hz-14kHz |
140Hz-14kHz |
140Hz-14kHz |
140Hz-14kHz |
|
Dimensions |
310x250x160mm |
410x250x160mm |
510x250x160mm |
620x250x160mm |
|
Weight |
3 kg |
5.5 kg |
8kg |
10.5kg |
