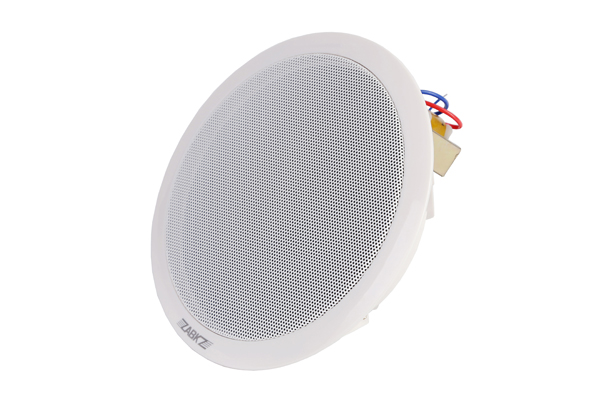

- WA124 Ceiling Speaker
● Equipped with 6.5" full-range loudspeaker with magnetic circuit encapsulated with special engineering plastic process, and the drum paper formed with tripping and hot pressing of algae salved organisms, for super-strong reproduction of voice and music.
● In compliance with IEC268-5 PHC standard, it can work continuously for 100 hours and carry out SAFE test under the rated power, and can bear twice rated power in a short time, which ensures the reliability of the speaker under extreme conditions, extends service life and greatly reduces the chance of failures or performance degradation.
WA124 ceiling speaker is 70/100V, 3-10W, suitable for various places. Max sound pressure level is 92dB±2dB. Effective Freq range is 90-20kHz. High sensitivity 90dB±2dB, long service life, clear and sonorous. Made of high quality engineering plastic, long term durability.
It is an ideal choice for industrial and commercial applications in hotel, school, trade building,
supermarket,where background music and paging is needed.
Model |
WA124 |
Unit Driver |
6.5″×1 |
RMS |
6W |
MAX. POWER |
10W |
Rated Input |
70/100V |
Sensitivity (1m, 1W) |
90dB±2dB |
MAX. SPL. (1m) |
92dB±2dB |
Freq. Resp. |
90-20kHz |
Cutout size |
ø165-ø170mm |
Dimension |
70mm×186mm |
Weight |
0.66kg |
