- PA2308
- PA2308 6 Zones Mixer Amplifier with SD/USB/Tuner/Bluetooth/Timer

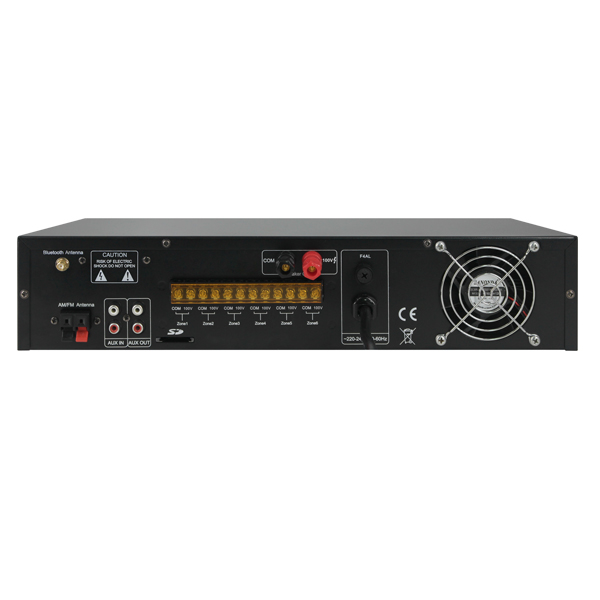

● 6 zones output with separated switch control

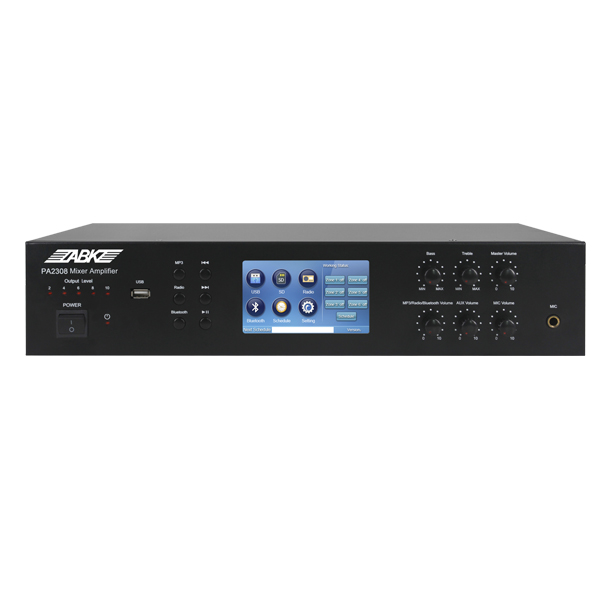

● 4.3” TFT capacitance touch screen.
● Touch and button-pressing control. Can operate with physical buttons when touch screen is broken.
● Built-in 4G MP3 program memory.
● Built-in radio; it can be manually / automatically searched and can store 40 radio channels.
● Built-in Bluetooth receiver module.
● 1 AUX ,1 Mic input ,1 AUX output.
Description:
The Integrated Mixer Amplifier PA2308 is a 6 zones mix amplifier integrated with the functions of U disk, SD card, tuner, radio, Bluetooth, zones and timer. With various functions, including song files playing, radio, schedule time etc. Touch screen control, all graphical interface, the operation is very simple and user-friendly.The device can meet the requirements of the users and can be widely applied. This product can be called6 zone amporbluetooth mixer amplifier.
Specification:
Item
PA2308
PA2315
PA2325
PA2335
PA2345
PA2365
Rate power
80W
150W
250W
350W
450W
650W
Speaker Outputs
100V
Harmonic Distortion
＜ 0.5%（1kHz , 1/3 rate power）
AUX Output
100Ω，1V ( 0dBV )
Input
Mic: 600Ω； 8mV (±10%)
Line: 10kΩ, 300mV (±10%), unbalanced
Line Freq.response
50Hz-20kHz（±3dB）
Mic Freq.response
40Hz-16kHz（±3dB）
Harmonic distortion
< 0.5%（1kHz , 1/3 rated power）
S/N Ratio
Mic: 70dB
Line: 80dB
Tone
Bass: ±10dB（100Hz）
Treble: ±10dB（10kHz）
Protection
AC fuse, DC output protection，overload protection.
Power Supply
AC220-240V/50-60Hz
Power Consumption
120W
220W
350W
450W
560W
800W
Size(L×W×H)
418×338×88mm
