- AXT2250

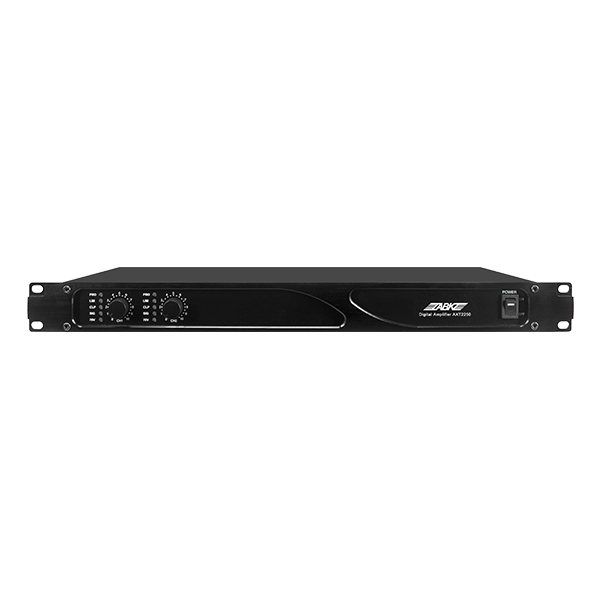

- AXT2250 125W-500W 2 Channels Class-D Digital Power Amplifier
● 2 channel amplifiers within one 1U & 19" case
● With 2 audio inputs and 2 channel speaker inputs
● With 2 priority inputs and 2 100V inputs (distant input)
● 70V/100V speaker output for long distance transfer
● Industrial design for audio project, long term & stable use
Description:
This Class D digital amplifier AXT2250 is a 2 channel digital amplifier , which designed for commercial and industrial public address applications. Rack mount of this amp digital design in 1U type and rated power is 2*125W/250W/500W.
DA2250 is also called two channel amplifier, both balanced and unbalanced line inputs are available for each channel. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V speaker outputs are convenient for installation when selection different speaker matching. Complete protection of this Class D digital amplifier include clip, short circuit, high temp and overload. With indications for power, signal, clip, protection and temperature. This product can be called 2 channel power amp or 2 channel 70v amplifier.
Specification:
Model
AXT2125
AXT2250
AXT2500
AXT4060
AXT4125
AXT4250
Channels
2
2
2
4
4
4
Rated power/channel
125W
250W
500W
60W
125W
250W
Rated output voltage
70V/100V
Input sensitivity
775mVRMS(0dBV/balanced input);
100VRMS (100V unbalanced input
S/N Ratio
> 80dB
Input impedance
60K ohms (balanced), 20K ohms (priority), 100K ohms (100V unbalanced)
Frequency response
80Hz-15kHz (±3dB)
Total harmonic distortion
<0.3 % (1kHz)
Power Consumption
300W
600W
1200W
300W
600W
1200W
Power requirement
AC180-260V/50-60Hz DC24V(rated power -3dB)
