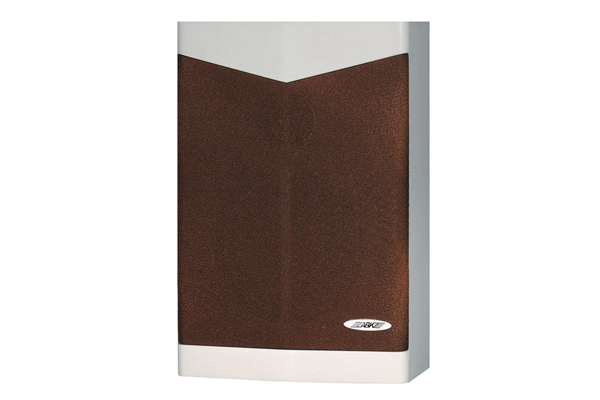

- WL331 Wall Mount Speaker
● Made of high beaverboard, hard to vibration, sound clear and sonorousness;
● Weight 4.8/6.3 kg, equipped with wall mount tip for installation convenient;
● 70/100V, 4-30W, with multiple terminals, suited for different field;
● Effective Freq. Range 170Hz ~ 12kHz, high sensitivity (93±2dB), Max. Sound Pressure Level 103/106±2dB.
● Weight 4.8/6.3 kg, equipped with wall mount tip for installation convenient;
● 70/100V, 4-30W, with multiple terminals, suited for different field;
● Effective Freq. Range 170Hz ~ 12kHz, high sensitivity (93±2dB), Max. Sound Pressure Level 103/106±2dB.
Description
The DSP331 is a wall mount speaker built-in 70v/100v transformer.The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in speaker driver is designed of wide frequency response 170-12,000Hz, the multiple power taps of 8W -15W could meet different applications varies from room size and ambient noise surroundings.
Equipped with hanging holes for mounting convenient, stable and hard to vibration, long-term durability; high sensitivity, clear and sonorous sound.
It is ideal choice for industrial and commercial applications in hotel, school, home, office and factory where background music and paging is needed.
Specification
The DSP331 is a wall mount speaker built-in 70v/100v transformer.The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in speaker driver is designed of wide frequency response 170-12,000Hz, the multiple power taps of 8W -15W could meet different applications varies from room size and ambient noise surroundings.
Equipped with hanging holes for mounting convenient, stable and hard to vibration, long-term durability; high sensitivity, clear and sonorous sound.
It is ideal choice for industrial and commercial applications in hotel, school, home, office and factory where background music and paging is needed.
Specification
|
Model |
WL331 |
|
Speaker Unit |
6.5’’x1 3’’x1 |
|
Rated Power |
8W-15W |
|
Rated input |
70/100V |
|
Sensitivity |
93±2dB |
|
Max SPL |
102±2dB |
|
Dimensions |
330x150x200mm |
|
FREQ.RESP |
170Hz-12kHz |
|
Weight |
4.8 kg |
