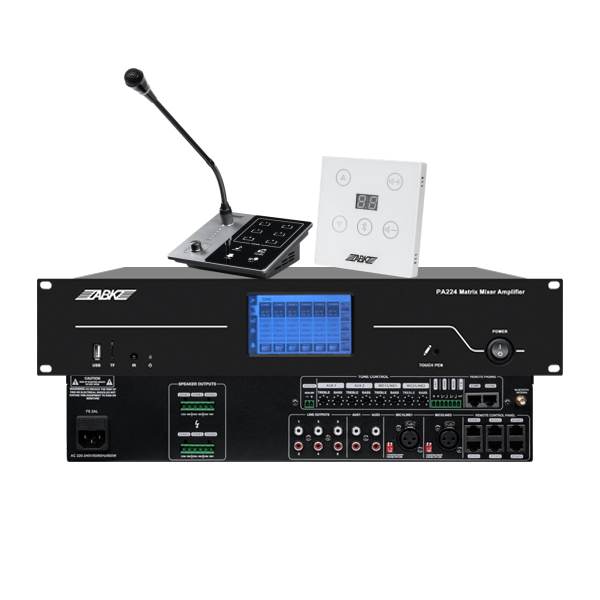

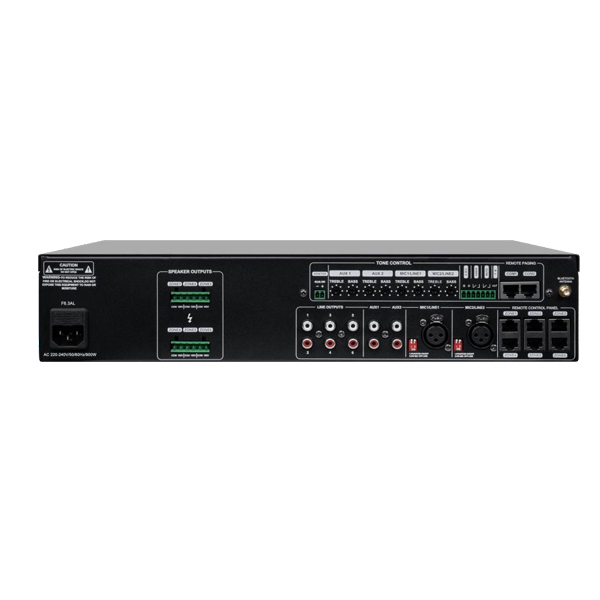

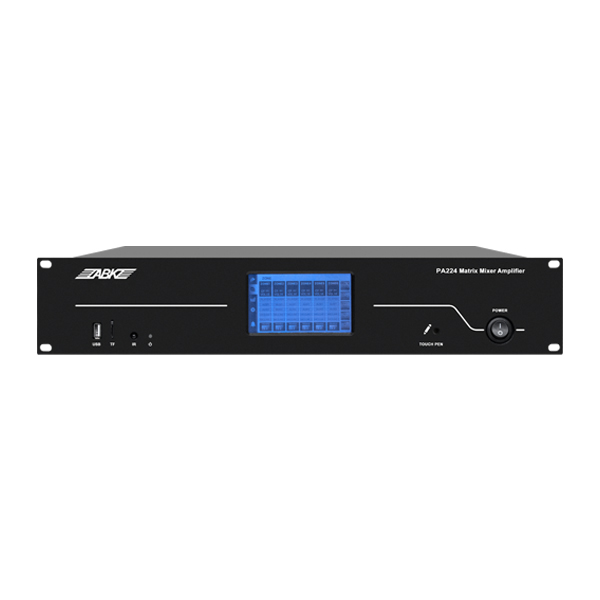

- PA224 Multi-function Matrix PA System
● Audio input: 2 AUX, 2 Mic/2 Lines,
● Support USB/Bluetooth/SD/FM function
● Support chime and alarm function
● Mic with XLR and phantom power 48V
● With independant bass/treble adjustment for each Aux input and Mic input
● With zone monitoring function, the monitoring volume changes with the zone volume
● With 6 channels RCA line output
● Priority: MUTE>EMC IN>SIREN>CHIME>Remote Paging Microphone>BT Touch Panel>others
● 6 channels Bluetooth Touch Control Panel Interface, fixed zone address, DC48V power supply
● Two channels RJ-45 remote paging microphone interfaces, support zone/all zones paging, up to 2 mics cascaded

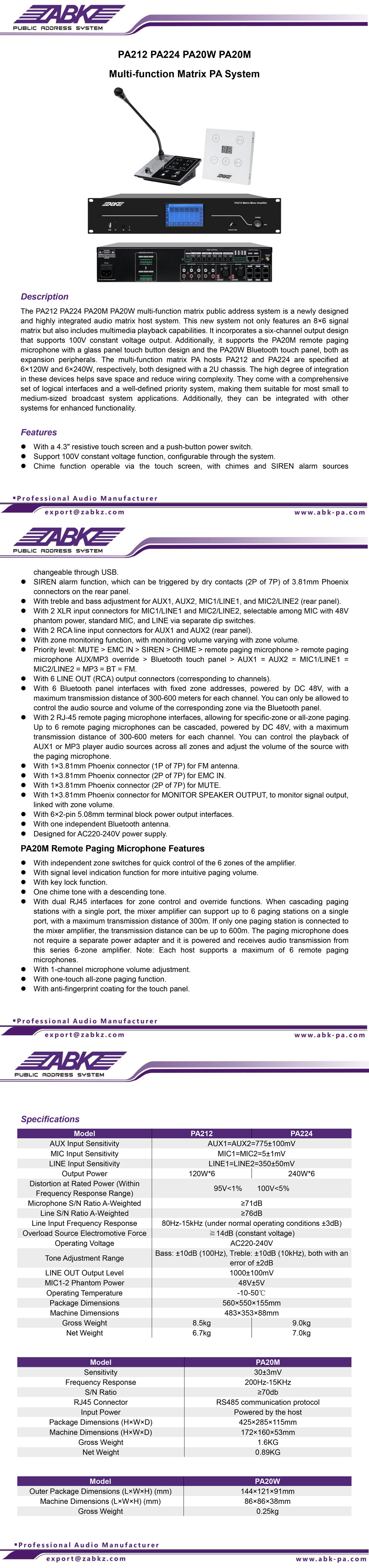

Description:
The PA212 PA224 PA20M PA20W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8×6 signal matrix but also includes multimedia playback capabilities. It incorporates a six-channel output design that supports 100V constant voltage output. Additionally, it supports the PA20M remote paging microphone with a glass panel touch button design and the PA20W Bluetooth touch panel, both as expansion peripherals. The multi-function matrix PA hosts PA212 and PA224 are specified at 6×120W and 6×240W, respectively, both designed with a 2U chassis. The high degree of integration in these devices helps save space and reduce wiring complexity. They come with a comprehensive set of logical interfaces and a well-defined priority system, making them suitable for most small to medium-sized broadcast system applications. Additionally, they can be integrated with other systems for enhanced functionality.
|
Model |
PA212 |
PA224 |
|
AUX Input Sensitivity |
AUX1=AUX2=775±100mV |
|
|
MIC Input Sensitivity |
MIC1=MIC2=5±1mV |
|
|
LINE Input Sensitivity |
LINE1=LINE2=350±50mV |
|
|
Output Power |
120W*6 |
240W*6 |
|
Distortion at Rated Power (Within Frequency Response Range) |
95V<1% 100V<5% |
|
|
Microphone S/N Ratio A-Weighted |
≥71dB |
|
|
Line S/N Ratio A-Weighted |
≥76dB |
|
|
Line Input Frequency Response |
80Hz-15kHz (under normal operating conditions ±3dB) |
|
|
Overload Source Electromotive Force |
≧14dB (constant voltage) |
|
|
Operating Voltage |
AC220-240V |
|
|
Tone Adjustment Range |
Bass: ±10dB (100Hz), Treble: ±10dB (10kHz), both with an error of ±2dB |
|
|
LINE OUT Output Level |
1000±100mV |
|
|
MIC1-2 Phantom Power |
48V±5V |
|
|
Operating Temperature |
-10-50℃ |
|
|
Package Dimensions |
560×550×155mm |
|
|
Machine Dimensions |
483×353×88mm |
|
|
Gross Weight |
8.5kg |
9.0kg |
|
Net Weight |
6.7kg |
7.0kg |
