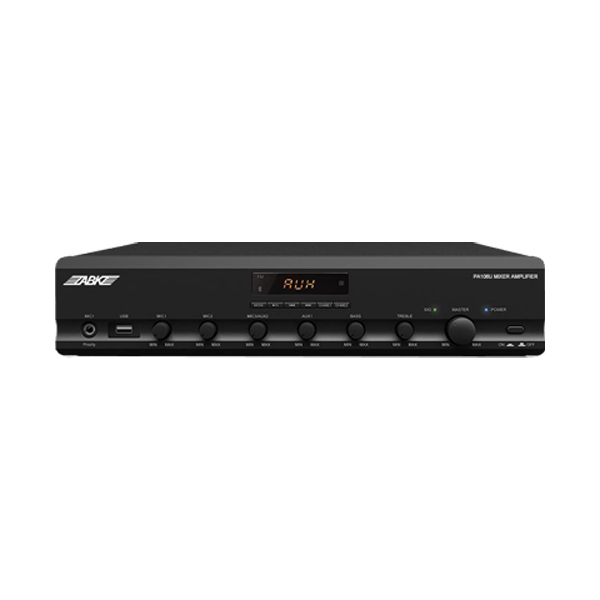

- PA135U Classic Mixer Amplifier
● With built-in Bluetooth, FM and USB function.
● With 3 MIC IN, 1 EMC IN, 2 AUX IN, 1 AUX OUT.
● Support 100V and 70V constant voltage output, and 4Ω～16Ω constant resistance output.
● Can be controlled by the infrared remote controller.
● With priority function, and the priority is MUTE>EMC=Alarm=Chime>MIC1>Others (When there is an alarm, no chime can be output).
● With master volume control, independent volume control of MIC and AUX, and TREBLE and Bass volume control.
● With SIREN short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices, with independent alarm output.
● With MUTE short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices.
● With 1 EMC IN, which can be used to input alarm signals from other devices to this machine.
● With power-off memory function.

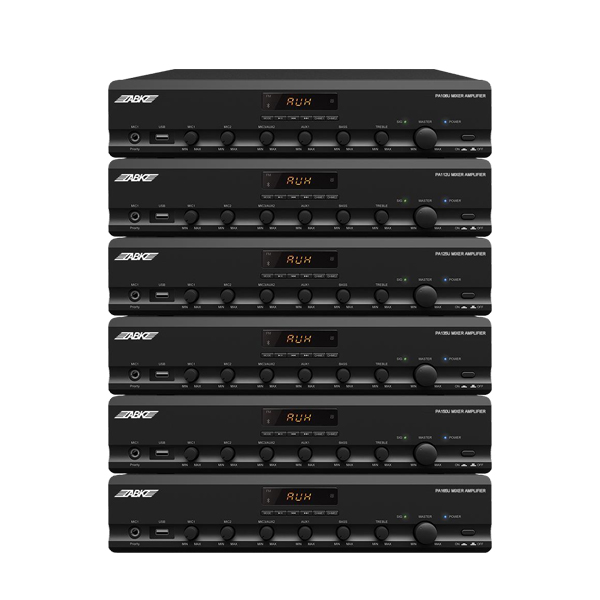

PA106U PA112U PA125U PA135U PA150U PA165U Digital Mixer Amplifier is a multi-functional mixer amplifier integrated with the functions of USB flash disk, FM, Bluetooth. PA106U/112U/125U support 70V/100V and 4-16Ω speaker output, while PA135U/150U/165U support 100V and 4-16Ω speaker output. With 3 Mic, 2 AUX, 2 EMC for audio input. With various functions, including clear screen display of status, EMC IN, MIC IN with phantom power, priority of inputs, user-friendly and easy to use. The device can meet the requirements of the users and can be widely used.
Specifications
Model
PA106U
PA112U
PA125U
PA135U
PA150U
PA165U
Power Supply
AC110-240V 50/60Hz
AC110-120V or 200-240V
50/60Hz
AC115V or AC230V 50/60Hz
MIC1 IN Sensitivity
10mV ±1mv
MIC2 IN Sensitivity
10mV±1mv
AUX1 IN Sensitivity
350mV±50mv
AUX2 IN Sensitivity
350mV±50mv
EMC IN Sensitivity
350mV±50mv
MIC Frequency Response
120Hz～12kHz (±3dB)
AUX Frequency Response
80Hz～15kHz (±3dB)
Distortion
<1%
Treble
10dB (±2)
Bass
10dB (±2)
Rated Output Power
AC110-240
V
60W
120W
250W
350W
500W
650W
DC24V
60W
175W
250W
325W
Port Output Voltage
4-16Ω,70V,100V (constant-voltage
output)
4-16Ω,100V (constant-voltage
output)
Machine Dimensions
(D×W×H)
430×280×88mm
430×330×88mm
430×380×88mm
Package Dimensions
500×450×165mm
500×500×165mm
550×500×165mm
Net Weight
3.8KG
4.6KG
6.8KG
6.1KG
6.3KG
7KG
Gross Weight
5KG
5.8KG
8.3KG
7.6KG
7.8KG
8.5KG
