- PA235U Digital Mixer Amplifier
● 70V/100V & 4-16Ω speaker output
● Rated power:250W
● Input source: 4 Mic, 4 AUX and USB/FM/Bluetooth/TF
● Support 6 remote paging microphones
● With 19" rack mount handles
● Phoenix port for Mic2-4 input ,Line2 input ,EMC input,
● Mute and Siren
● Mic 2-4 with phantom power 48V
● Individual volume control and Bass/Treble adjustment
● Priority: MUTE>EMC IN=SIREN>MIC1=CHIME=
● Remote Mic>Mic2-Mic4/AUX input/Bluetooth/FM/USB
● Protection: Overload, Clipping, Short circuit and temperature protection
● Power supply: AC110V-240V/50Hz/60Hz or DC24V
● Rated power:250W
● Input source: 4 Mic, 4 AUX and USB/FM/Bluetooth/TF
● Support 6 remote paging microphones
● With 19" rack mount handles
● Phoenix port for Mic2-4 input ,Line2 input ,EMC input,
● Mute and Siren
● Mic 2-4 with phantom power 48V
● Individual volume control and Bass/Treble adjustment
● Priority: MUTE>EMC IN=SIREN>MIC1=CHIME=
● Remote Mic>Mic2-Mic4/AUX input/Bluetooth/FM/USB
● Protection: Overload, Clipping, Short circuit and temperature protection
● Power supply: AC110V-240V/50Hz/60Hz or DC24V
Description
PA225U Series Digital Mixer Amplifier can be used in conjunction with the PA20R Remote Paging Station, supporting 2-channel RJ-45 remote paging microphone. The amplifier has a screen for intuitive display, with such input sources as 4 MIC, 4 AUX, USB, FM, Bluetooth and TF. It also provides protection function when overload, clipping, short circuit and abnormal working temperature occur. It is an amplifier integrating multiple functions to meet users’ demand.
PA225U Series Digital Mixer Amplifier can be used in conjunction with the PA20R Remote Paging Station, supporting 2-channel RJ-45 remote paging microphone. The amplifier has a screen for intuitive display, with such input sources as 4 MIC, 4 AUX, USB, FM, Bluetooth and TF. It also provides protection function when overload, clipping, short circuit and abnormal working temperature occur. It is an amplifier integrating multiple functions to meet users’ demand.

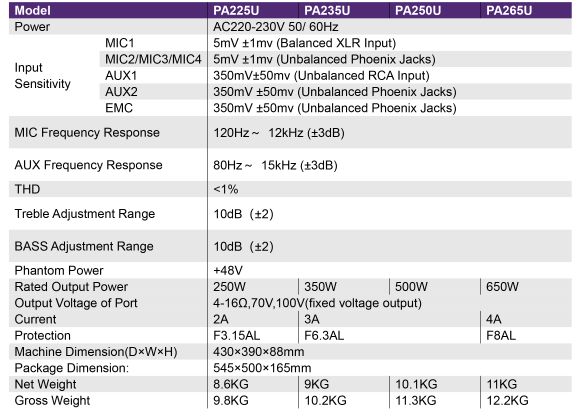

Specifications
