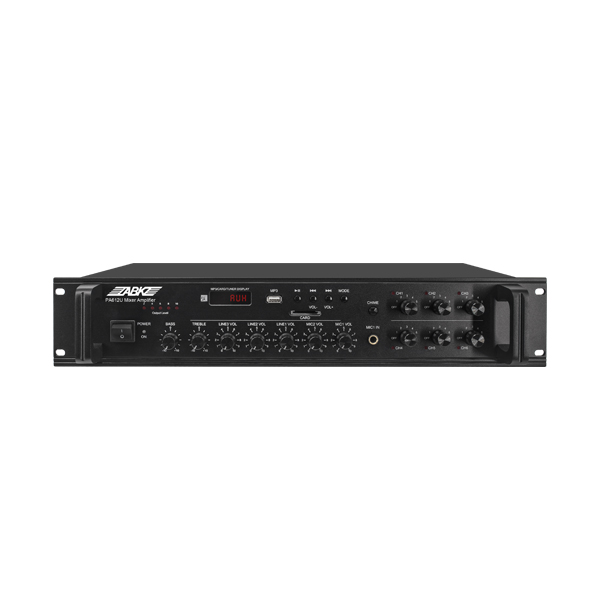

- PA612U Mixer Amplifier with Bluetooth
● Infrared remote control to control MP3/TUNER/BT, which includes modes switches, program selection, volume adjustment, repeat mode, EQ mode and USB/SD switches.
● LED display indicates volume, playing status, program number, etc.
● 4 MIC inputs, 3 AUX inputs, and 1 AUX output.
● 4-16 Ω rated output.
● 6-zone selector, individual volume control and output level indication for each zone output.
● Mute function for priority input.
● Treble and Bass control.
● Chime with priority output.
● 5-unit LED indicates monitoring volume output in each zone.
● Output short circuit protection and caution.
Description
This product is a mixer amplifier with MP3 player, FM tuner, and Bluetooth. It supports infrared remote control for mode switching, program selection, volume control, EQ mode selection, and source selection. With an LED display screen, it can show the volume level, playing status, program number, etc. It provides 4 microphone inputs, 3 auxiliary inputs and 1 auxiliary output. Also, with a zone selector, it can realize separate volume control for 6 zones.
Specifications
Model
PA606U
PA612U
PA625U
PA635U
Rated Output
60W
120W
250W
350W
Output regulation
≤3dB (from full load to off-load)
Input sensitivity
Microphone : ≤3mV (unbalanced)
AUX: ≤300mV (unbalanced)
Frequency response
80Hz-16KHz (±3dB)
Distortion
≤1% （1KHz, normal operating status）
S/N Ratio
AUX: ≥74dB
Tone
Bass: ±10dB（at 100Hz）
Treble: ±10dB（at 10kHz）
Protection
DC voltage; overload; short-circuit.
Mute
Input signals from MIC 1 override other input signals.
Power supply
AC 220V/50Hz
Power
Consumption
120W
250W
500W
650W
Outer Packing Size(mm)
(L×W×H) 555×455×185
Unit Size (mm)
(L×W×H) 484×355×88
Gross Weight
11.7kg
13.5kg
16kg
17kg
Net Weight
9.7kg
11.5kg
14kg
15kg
