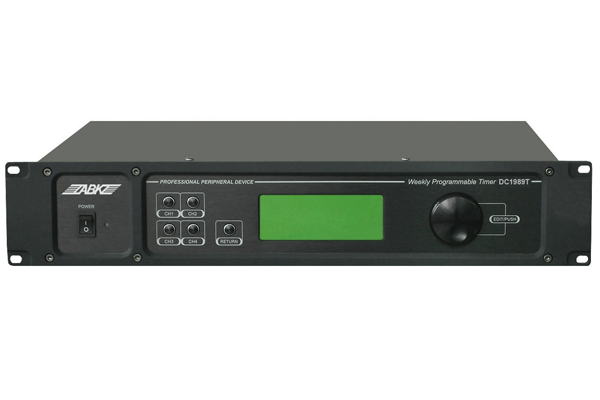

- DC1989T Program Timing Player
● Jog-Dial Control, graphical interfaces and multi-level menu for use adjustment, it is a really easy access device without the complexity of personal knowledge.
● Micro computer chip control, light-touch button.
● Can control external CD/Radio/Cassette Player etc.
● With the “manual” key to be controlled manually to effect the program
● Touching off of alarm is activate always
DC1989T is a PC Control Weekly Programmable Timer
1.LCD screen display;
2.Jog-Dial Control,graphical interfaces, multi-level menu for use adjustment;
3.Micro computer chip control
To program 16 DC1975D、16 DC1976C、16 DC1977R、1 DC1979P,ect.
Specification
|
Timing Jack |
2+4 （temporal voltage） |
|
Capacity of Jack
|
MAIN 1：AC220V , 2.5A |
|
MAIN 2：AC220V , 2.5A |
|
|
CH 1、CH 2、CH 3、CH 4： (AC220V ), 1A |
|
|
Program |
Programmable, 700 in total |
|
Time Format |
24 hours |
|
Programmable Channels |
4（CH 1、2、3、4） |
|
Chime |
3 |
|
Chime Level |
300mV |
|
Programmable Peripheral Equipment |
DC1975D、DC1976C、DC1977R、DC1978S、 DC1984B、DC1984D、DC1979P |
|
Capacity of Peripheral |
16/DC1975D、16/DC1976C、16/DC1977R、1/DC1978S、5/DC1984B、5/DC1984D、1/DC1979P No more than 50 in total |
|
MAX Distance |
1000m |
|
Protection |
AC Fuse×1(220V: F10AL, 110V: F10AL) |
|
Power Requirement |
1. AC220V/110V 50/60Hz 2. DC24V |
|
Outer Packing Size (mm) |
(L×W×H)555×455×185 |
|
Unit Size (mm) |
(L×W×H)484×349.5×88 |
|
Gross weight |
8.7 kg |
|
Net weight |
6.8kg |
