- AXT2176C

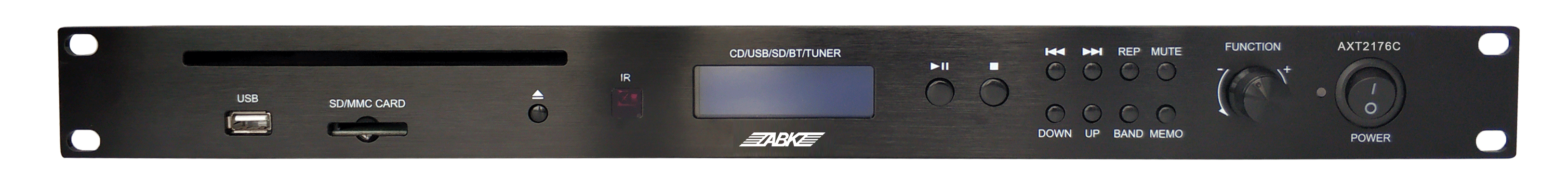

- AXT2176C Multi-channel Media Player with CD/USB/FM/Bluetooth 1U
● Imported digital movement is adopted, system +ESS decoding scheme and super error correction function
● Microcomputer control with light touch button
● Supports FM/AM digital radio
● Stereo radio L/R output
● Stereo CD/MP3 L/R output
● Stereo bluetooth L/R output
● Mixed audio output
● FM/AM radio can store 40 stations respectively
Description:

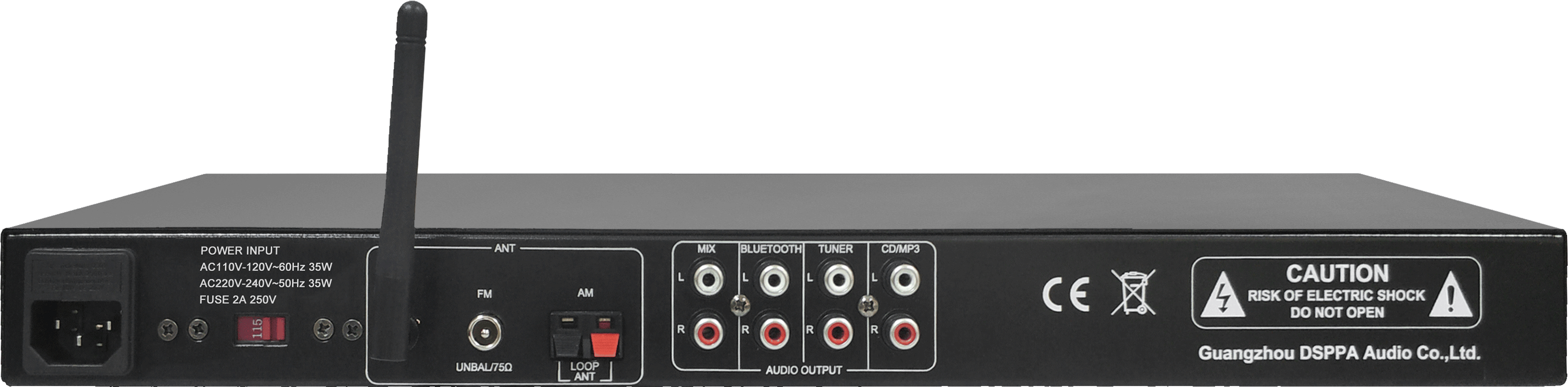

The AXT2176C is an audio player with CD playback, radio and Bluetooth function. It supports a variety of audio playback, including CD, USB, SD, Bluetooth and radio signals; has full light touch button control and blue LCD display with high brightness to display clear working status of the audios; has one-way mixed output, one-way Bluetooth output, one-way radio signal output, one-way CD/MP3 audio output, and the mixed output supports simultaneous output of three-way audio of Bluetooth, radio signal and CD/MP3, which meets various requirements in the application scenes.
Specification:
Model
AXT2176C
Laser Player
Maximum output voltage
1KHz -10dB signal
1000±100mV
Frequency response range
20-19KHz(±1dB)
THD
≤0.3%
Noise
≤0.02mv
USB
Maximum output voltage
1000±100mV
Frequency response range
20-19KHz(±1dB)
THD
≤0.3%
Noise
≤0.02mv
SD
Maximum output voltage
1000±100mV
Frequency response range
20-19KHz(±1dB)
THD
≤0.3%
Noise
≤0.02mv
Bluetooth
Maximum output voltage
1KHz -10dB
1000±100mv
Frequency response range
20-19KHz(±2dB)
THD
≤0.3%
Noise
≤0.06mV
Distance
Best within 10M
Radio function (FM/AM)
Maximum output voltage
1200±100mV
Amplitude limiting sensitivity
-80dB
Frequency response range
40-10KHz(±3dB)
Distortion
≤0.2%
SNR
≥60dB
Store/Memory function
40 pcs
Protection
AC fuse
Power supply
AC110-120V/60Hz/35W
AC220-240V/50Hz/35W
Outer packing dimension (mm)
(L×W×H) 534×350×110
Machine dimension (mm)
(L×W×H) 483×210×44
Gross weight
4.4kg
Net weight
3.65kg
