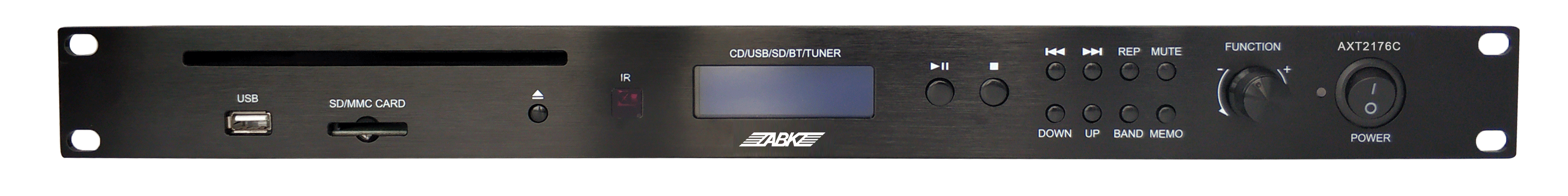

- AXT2176C
- Multi-channel Media Player with CD/USB/FM/Bluetooth 1U
● Imported digital movement is adopted, system +ESS decoding scheme and super error correction function
● Microcomputer control with light touch button
● Supports FM/AM digital radio
● Stereo radio L/R output
● Stereo CD/MP3 L/R output
● Stereo bluetooth L/R output
● Mixed audio output
● FM/AM radio can store 40 stations respectively
Description:
Specification:
|
Model |
AXT2176C | |
|
Laser Player |
Maximum output voltage 1KHz -10dB signal |
1000±100mV |
|
|
Frequency response range |
20-19KHz(±1dB) |
|
|
THD |
≤0.3% |
|
|
Noise |
≤0.02mv |
|
USB |
Maximum output voltage |
1000±100mV |
|
|
Frequency response range |
20-19KHz(±1dB) |
|
|
THD |
≤0.3% |
|
|
Noise |
≤0.02mv |
|
SD |
Maximum output voltage |
1000±100mV |
|
|
Frequency response range |
20-19KHz(±1dB) |
|
|
THD |
≤0.3% |
|
|
Noise |
≤0.02mv |
|
Bluetooth |
Maximum output voltage 1KHz -10dB |
1000±100mv |
|
|
Frequency response range |
20-19KHz(±2dB) |
|
|
THD |
≤0.3% |
|
|
Noise |
≤0.06mV |
|
|
Distance |
Best within 10M |
|
Radio function (FM/AM) |
Maximum output voltage |
1200±100mV |
|
|
Amplitude limiting sensitivity |
-80dB |
|
|
Frequency response range |
40-10KHz(±3dB) |
|
|
Distortion |
≤0.2% |
|
|
SNR |
≥60dB |
|
|
Store/Memory function |
40 pcs |
|
Protection |
AC fuse |
|
|
Power supply |
AC110-120V/60Hz/35W AC220-240V/50Hz/35W |
|
|
Outer packing dimension (mm) |
(L×W×H) 534×350×110 |
|
|
Machine dimension (mm) |
(L×W×H) 483×210×44 |
|
|
Gross weight |
4.4kg |
|
|
Net weight |
3.65kg |
|
