PA212 Multi-function Matrix PA System
左滚动
  • PA212 Multi-function Matrix PA System
  • PA212 Multi-function Matrix PA System
  • PA212 Multi-function Matrix PA System
  • PA212 Multi-function Matrix PA System
右滚动
  • PA212 Multi-function Matrix PA System

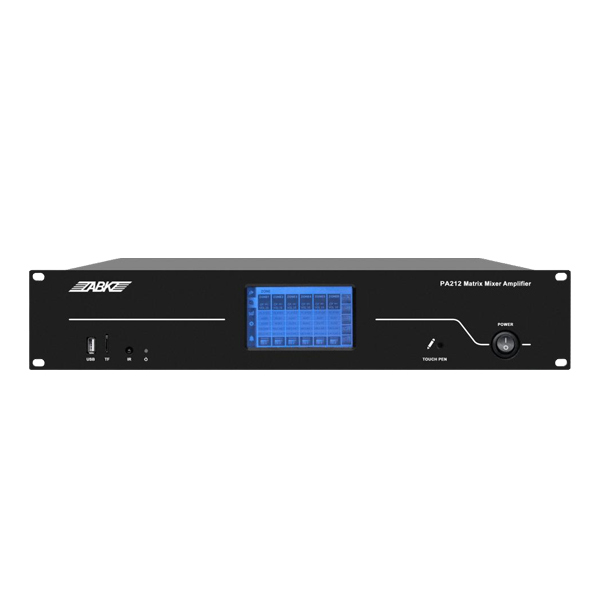

● 4.3" touch screen for easily operation
● Audio input: 2 AUX, 2 Mic/2 Lines,
● Support USB/Bluetooth/SD/FM function
● Support chime and alarm function
● Mic with XLR and phantom power 48V
● With independant bass/treble adjustment for each Aux input and Mic input
● With zone monitoring function, the monitoring volume changes with the zone volume
● With 6 channels RCA line output
● Priority: MUTE>EMC IN>SIREN>CHIME>Remote Paging Microphone>BT Touch Panel>others
● 6 channels Bluetooth Touch Control Panel Interface, fixed zone address, DC48V power supply
● Two channels RJ-45 remote paging microphone interfaces, support zone/all zones paging, up to 2 mics cascaded,

Description:

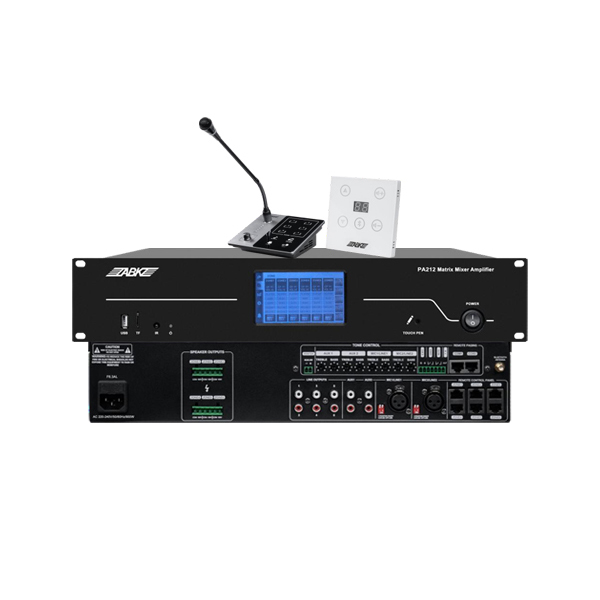

The PA212 PA224 PA20M PA20W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8×6 signal matrix but also includes multimedia playback capabilities. It incorporates a six-channel output design that supports 100V constant voltage output. Additionally, it supports the PA20M remote paging microphone with a glass panel touch button design and the PA20W Bluetooth touch panel, both as expansion peripherals. The multi-function matrix PA hosts PA212 and PA224 are specified at 6×120W and 6×240W, respectively, both designed with a 2U chassis. The high degree of integration in these devices helps save space and reduce wiring complexity. They come with a comprehensive set of logical interfaces and a well-defined priority system, making them suitable for most small to medium-sized broadcast system applications. Additionally, they can be integrated with other systems for enhanced functionality.


Model

PA212

PA224

AUX Input Sensitivity

AUX1=AUX2=775±100mV

MIC Input Sensitivity

MIC1=MIC2=5±1mV

LINE Input Sensitivity

LINE1=LINE2=350±50mV

Output Power

120W*6

240W*6

Distortion at Rated Power (Within

Frequency Response Range)

95V<1% 100V<5%

Microphone S/N Ratio A-Weighted

≥71dB

Line S/N Ratio A-Weighted

≥76dB

Line Input Frequency Response

80Hz-15kHz (under normal operating conditions ±3dB)

Overload Source Electromotive Force

14dB (constant voltage)

Operating Voltage

AC220-240V

Tone Adjustment Range

Bass: ±10dB (100Hz), Treble: ±10dB (10kHz), both with an

error of ±2dB

LINE OUT Output Level

1000±100mV

MIC1-2 Phantom Power

48V±5V

Operating Temperature

-10-50

Package Dimensions

560×550×155mm

Machine Dimensions

483×353×88mm

Gross Weight

8.5kg

9.0kg

Net Weight

6.7kg

7.0kg
