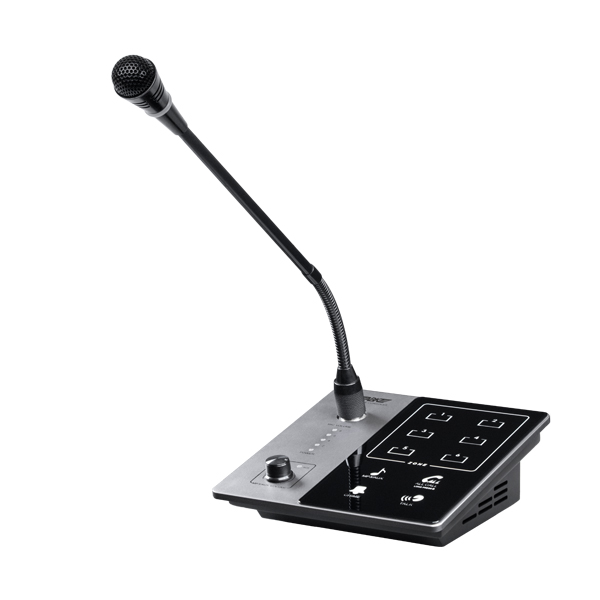

PA20W Remote Paging Microphone Features
左滚动
  • PA20W Remote Paging Microphone Features
  • PA20W Remote Paging Microphone Features
右滚动
  • PA20W Remote Paging Microphone Features
● With independent zone switches for quick control of the 6 zones of the amplifier.
● With signal level indication function for more intuitive paging volume.
● With key lock function. One chime tone with a descending tone.
● With dual RJ45 interfaces for zone control and override functions.
● When cascading paging stations with a single port, the mixer amplifier can support up to 6 paging stations on a single port, with a maximum transmission distance of 300m. If only one paging station is connected to the mixer amplifier, the transmission distance can be up to 600m. The paging microphone does not require a separate power adapter and it is powered and receives audio transmission from this series 6-zone amplifier. Note: Each host supports a maximum of 6 remote paging microphones.
● With 1-channel microphone volume adjustment.
● With one-touch all-zone paging function.
● With anti-fingerprint coating for the touch panel.

Description

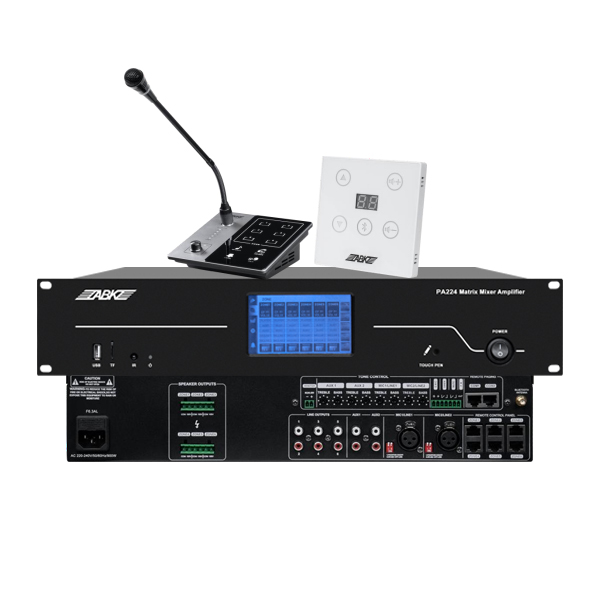

The PA212 PA224 PA20M PA20W multi-function matrix public address system is a newly designed and highly integrated audio matrix host system. This new system not only features an 8×6 signal matrix but also includes multimedia playback capabilities. It incorporates a six-channel output design that supports 100V constant voltage output. Additionally, it supports the PA20M remote paging microphone with a glass panel touch button design and the PA20W Bluetooth touch panel, both as expansion peripherals. The multi-function matrix PA hosts PA212 and PA224 are specified at 6×120W and 6×240W, respectively, both designed with a 2U chassis. The high degree of integration in these devices helps save space and reduce wiring complexity. They come with a comprehensive set of logical interfaces and a well-defined priority system, making them suitable for most small to medium-sized broadcast system applications. Additionally, they can be integrated with other systems for enhanced functionality.


Model

PA20M

Sensitivity

30±3mV

Frequency Response

200Hz-15KHz

S/N Ratio

≥70db

RJ45 Connector

RS485 communication protocol

Input Power

Powered by the host

Package Dimensions (H×W×D)

425×285×115mm

Machine Dimensions (H×W×D)

172×160×53mm

Gross Weight

1.6KG

Net Weight

0.89KG
