PA35UB Mini Digital Mixer Amplifier with USB/FM/Bluetooth
左滚动
  • PA35UB Mini Digital Mixer Amplifier with USB/FM/Bluetooth
  • PA35UB Mini Digital Mixer Amplifier with USB/FM/Bluetooth
右滚动
  • PA35UB Mini Digital Mixer Amplifier with USB/FM/Bluetooth
● Built-in Bluetooth, FM, and USB function.
● 2 MIC inputs, 2 line inputs, 1 line output.
● 2 EMC inputs (100V/375mV), 1 EMC output.
● Support 100V/70V constant voltage output, and 4-16Ω constant resistance output.
● Can be controlled by the infrared remote controller.
● With priority function, the priority is EMC/MIC1>AUX1/AUX2/MIC2.
● With master volume control, individual volume control for MIC & LINE, treble and bass volume control.

Description


This series of products are 1.5U mini digital mixer amplifiers with USB/FM/Bluetooth, with speaker output of 70V/100V& 4-16Ω optional. Models vary from power to power.

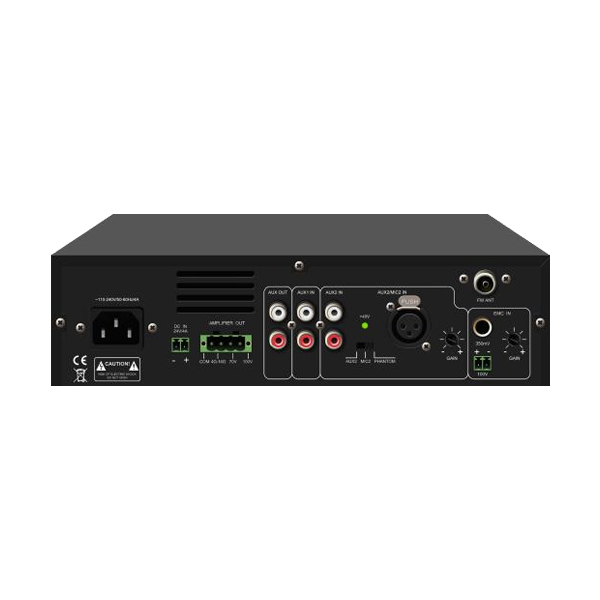

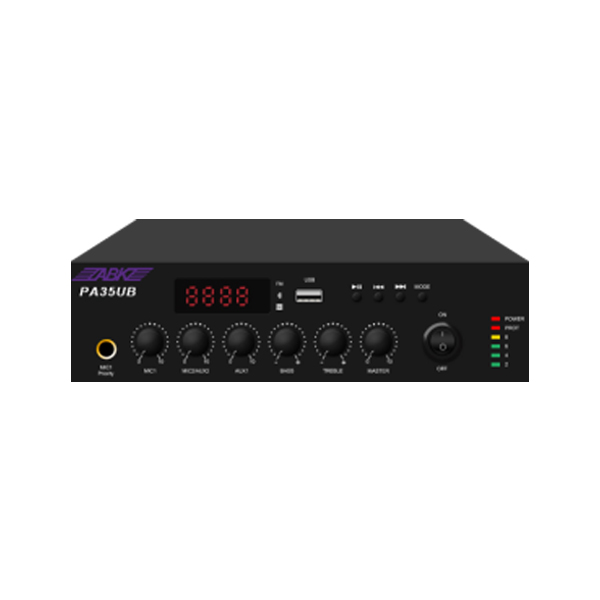

PA35UB/PA60UB/PA120UB corresponds to 35W/60W/120W. The product holds 2 AUX inputs and 1 AUX output. Also, it has 2 MIC inputs. The MIC 1 is a 6.3mm jack on the front panel and the MIC 2 is a XLR port on the rear panel. The phantom power is available in MIC 2. In addition, it provides individual volume control for each MIC and AUX, and has bass and treble control. What’s more, it has 2 EMC signal inputs (100V/375mV) and 1 EMC output.


Model

PA35UB

PA60UB

PA120UB

Power Supply

~110-240 50/60Hz

MIC1 Input Sensitivity

5.5mV±1mV

7mV±1mV

MIC2 Input Sensitivity

5.5mV±1mV

7mV±1mV

AUX1 Input Sensitivity

350mV±10%

300mV±10%

AUX2 Input Sensitivity

350mV±10%

300mV±10%

EMC Input Sensitivity

350mV±10%

MIC Frequency Response

200Hz~10kHz (±3dB)

100Hz~8kHz (±3dB)

AUX Frequency Response

100Hz~15kHz (±3dB)

80Hz~15kHz (±3dB)

Noise

<5mV (4Ω load out)

≤6mV (4Ω load out)

Distortion

<1% 1KHZ

Treble Adjustment

10dB (±2)

Bass Adjustment

10dB (±2)

Rated Output Power

35W

60W

120W

Interface Output Mode

70V, 100V (constant voltage output), 4-16Ω

Machine Size (D×W×H)

198×247×66mm

Package Size

302×343×121mm (1PC)

Maximum Package Size

355×630×283mm (4PCS)

Net Weight

2.55kg

2.6kg

3kg

Gross Weight

3.2kg (1PC)

3.25kg (1PC)

3.7kg (1PC)
