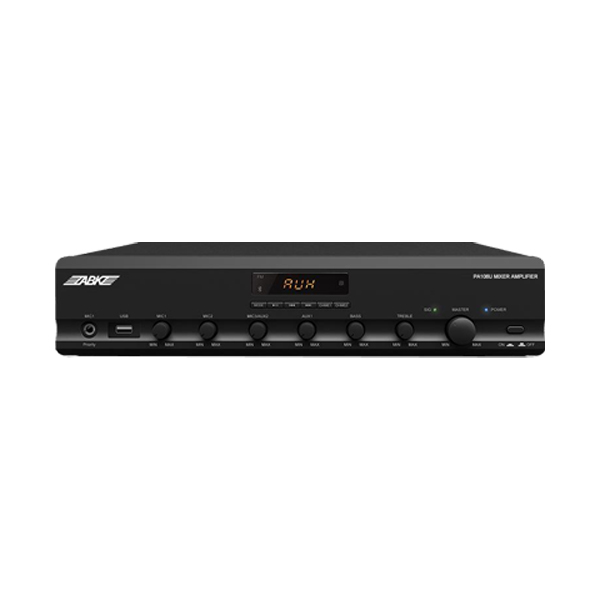

- PA106U Classic Mixer Amplifier
● With built-in Bluetooth, FM and USB function.
● With 3 MIC IN, 1 EMC IN, 2 AUX IN, 1 AUX OUT.
● Support 100V and 70V constant voltage output, and 4Ω～16Ω constant resistance output.
● Can be controlled by the infrared remote controller.
● With priority function, and the priority is MUTE>EMC=Alarm=Chime>MIC1>Others (When there is an alarm, no chime can be output).
● With master volume control, independent volume control of MIC and AUX, and TREBLE and Bass volume control.
● With SIREN short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices, with independent alarm output.
● With MUTE short circuit trigger function, which can be remotely controlled by this machine or controlled by other devices.
● With 1 EMC IN, which can be used to input alarm signals from other devices to this machine.
● With power-off memory function.

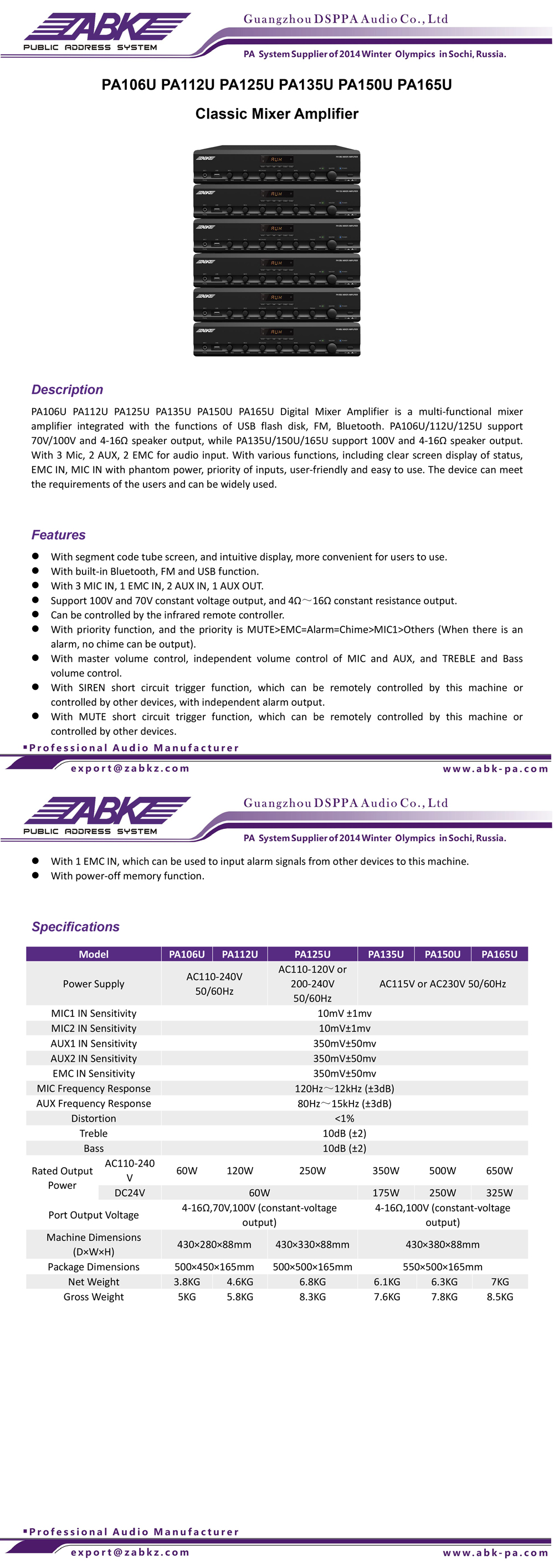

Description

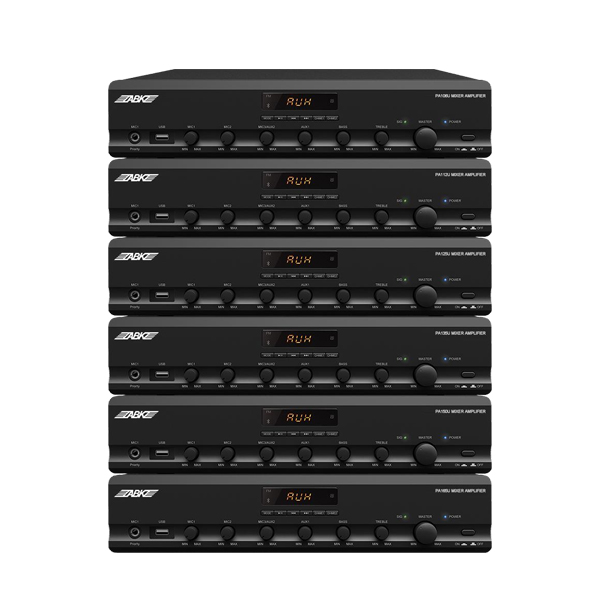

PA106U PA112U PA125U PA135U PA150U PA165U Digital Mixer Amplifier is a multi-functional mixer amplifier integrated with the functions of USB flash disk, FM, Bluetooth. PA106U/112U/125U support 70V/100V and 4-16Ω speaker output, while PA135U/150U/165U support 100V and 4-16Ω speaker output. With 3 Mic, 2 AUX, 2 EMC for audio input. With various functions, including clear screen display of status, EMC IN, MIC IN with phantom power, priority of inputs, user-friendly and easy to use. The device can meet the requirements of the users and can be widely used.
Specifications
|
Model |
PA106U |
PA112U |
PA125U |
PA135U |
PA150U |
PA165U |
|
|
Power Supply |
AC110-240V 50/60Hz |
AC110-120V or 200-240V 50/60Hz |
AC115V or AC230V 50/60Hz |
||||
|
MIC1 IN Sensitivity |
10mV ±1mv |
||||||
|
MIC2 IN Sensitivity |
10mV±1mv |
||||||
|
AUX1 IN Sensitivity |
350mV±50mv |
||||||
|
AUX2 IN Sensitivity |
350mV±50mv |
||||||
|
EMC IN Sensitivity |
350mV±50mv |
||||||
|
MIC Frequency Response |
120Hz～12kHz (±3dB) |
||||||
|
AUX Frequency Response |
80Hz～15kHz (±3dB) |
||||||
|
Distortion |
<1% |
||||||
|
Treble |
10dB (±2) |
||||||
|
Bass |
10dB (±2) |
||||||
|
Rated Output Power |
AC110-240 V |
60W |
120W |
250W |
350W |
500W |
650W |
|
DC24V |
60W |
175W |
250W |
325W |
|||
|
Port Output Voltage |
4-16Ω,70V,100V (constant-voltage output) |
4-16Ω,100V (constant-voltage output) |
|||||
|
Machine Dimensions (D×W×H) |
430×280×88mm |
430×330×88mm |
430×380×88mm |
||||
|
Package Dimensions |
500×450×165mm |
500×500×165mm |
550×500×165mm |
||||
|
Net Weight |
3.8KG |
4.6KG |
6.8KG |
6.1KG |
6.3KG |
7KG |
|
|
Gross Weight |
5KG |
5.8KG |
8.3KG |
7.6KG |
7.8KG |
8.5KG |
|
